Description
PS:
The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)
| Model | AC-DC Mode | DC-AC Mode | |||||||
| AC Input Voltage | DC Output Voltage | Output Power | DC Input Voltage | AC Output Voltage | Output Power | ||||
| Rated | Range | Rated | Range | Rated | Range | ||||
| DA22KM16-380S650C | 3-Phase 380Vac | 155V-456Vac | 800Vdc | 200V-800Vdc | 22kW | 800Vdc | 560V-800Vdc | 380Vac | 22kW |
| 1-Phase 220Vac | 90V-264Vac | 800Vdc | 200V-800Vdc | 6.6kW | 800Vdc | 300V-800Vdc | 220Vac | 6.6kW | |

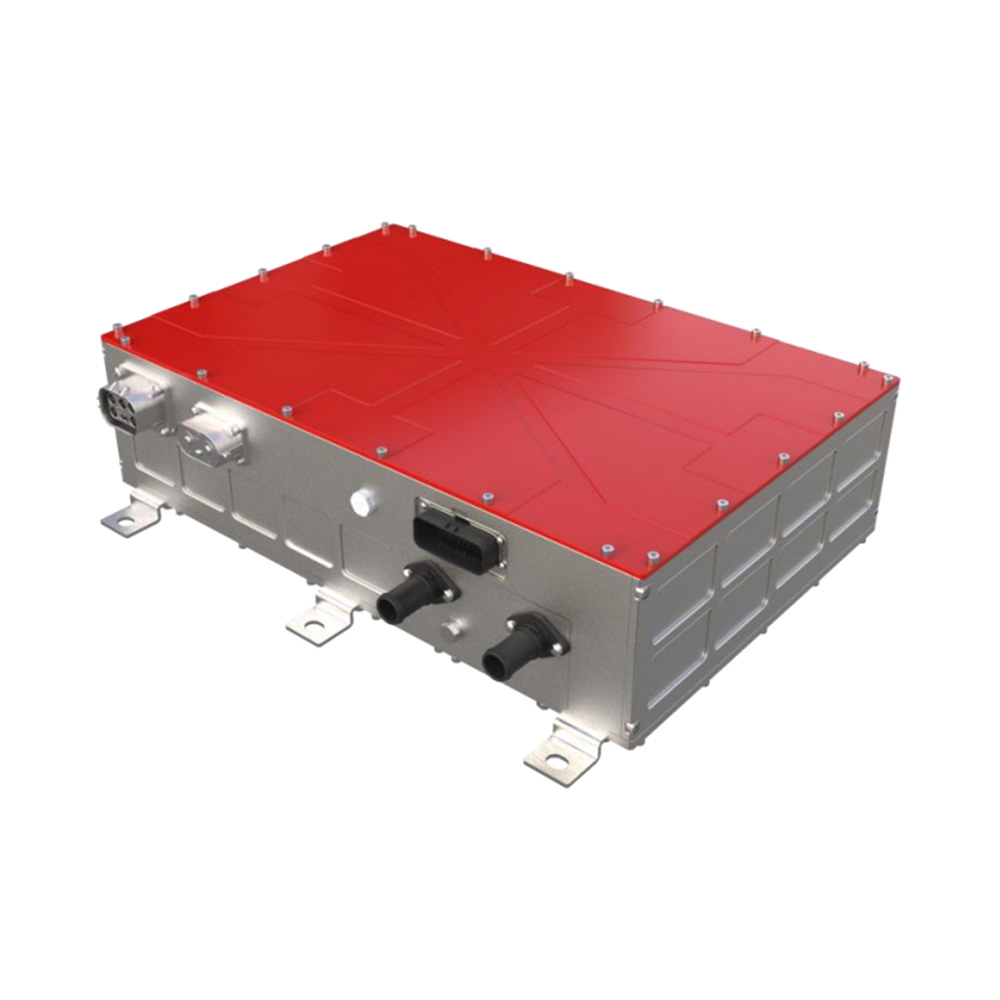

DA22KM16-380S650C is a bidirectional OBC switching power converter that adopts advanced all digital resonant frequency modulation technology and has high efficiency. Compared with similar products, it is more energy-efficient, compact, and reliable in operation. The charging method adopts proprietary patented technology, which automatically switches between constant voltage, constant current, and constant power states, effectively saving charging time; Equipped with active power factor correction function, low pollution to the power grid; Wide range of input and output voltage; Adopting CAN2.0B communication protocol; Equipped with intelligent charging function, intelligent monitoring and fault alarm protection function, burning and writing, fault inquiry and other functions. Equipped with control guidance function connected to the charging station (optional) (compatible with GB/T18487.1_2015 IEC61851.1_2017 and SAE J1772-2017) etc.
When DA22KM16-380S650C operates in forward direction AC-DC mode (charging mode), the rated power is 22KW. The power supply method can use three-phase AC input (three-phase five wire, three-phase four wire and three-phase three wire) or single-phase AC input, with an input voltage range of 155Vac~456Vac (phase voltage: 90Vac~264Vac), rated input voltage of 380Vac (phase voltage: 220Vac), 50Hz/60Hz. The output voltage range is 200Vdc~850Vdc, with a rated output voltage of 650Vdc and a maximum output current of 27.5A. When the power supply operates in reverse DC-AC mode (discharge mode),, and there are four output methods. Method 1: output three-phase 380Vac, 50Hz, with a rated power of 22KW,V2L; Method 2: Output single-phase 220Vac, 50Hz, rated power 6.6KW,V2L; Method 3: output three-phase 380Vac, 50Hz, with a rated power of 22KW,V2G; Method 2: Output single-phase 220Vac, 50Hz, rated power 6.6KW,V2G.
AC-DC Mode
- Input Voltage: 380V(155-456Vac); 220V(90-264Vac)
- Max Input Current: 32A
- Frequency: 50Hz/60Hz
- Output Voltage: 800V(200-800Vdc)
- Rated Power: 22kW; 6.6kW
DC-AC Mode
- Rated Input Voltage: 800Vdc
- Input Voltage Range: 560-800Vdc; 300-800Vdc
- Output Voltage: 380Vac(50Hz/60Hz); 220Vac(50Hz/60Hz)
- Rated Power: 22kW; 6.6kW
- Power factor: ≥0.99
- Efficiency: ≥94%
- Protection grade: IP67 Waterproof
- Operation temperature: - 40℃～85℃
- Storage temperature: - 40℃～85℃
- Control: CAN
- Cooling way: Liquid Cooling
