Dilong 1.8kW 2kW Open Frame EV DC DC Converter Module 14V 28V 48V Output

Name: Dilong 1.8kW 2kW Open Frame EV DC DC Converter Module 14V 28V 48V Output
Price: 363 USD
Availability: InStock
Rating: 5.0 (2 reviews)

Dilong 1.8kW 2kW Open Frame EV DC DC Converter Module 14V 28V 48V Output

Model

DE1K8S14

Input Voltage Rated(Range)

560V(200-750Vdc)

650V(500-850Vdc)

800V(500-940Vdc)

Output Voltage Rated(Range)

14V(12.6-15.4Vdc)

28V(25.2-30.8Vdc)

48V(43.2-52.8Vdc)

Rated/Peak Output Power

1.8kW/2kW

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

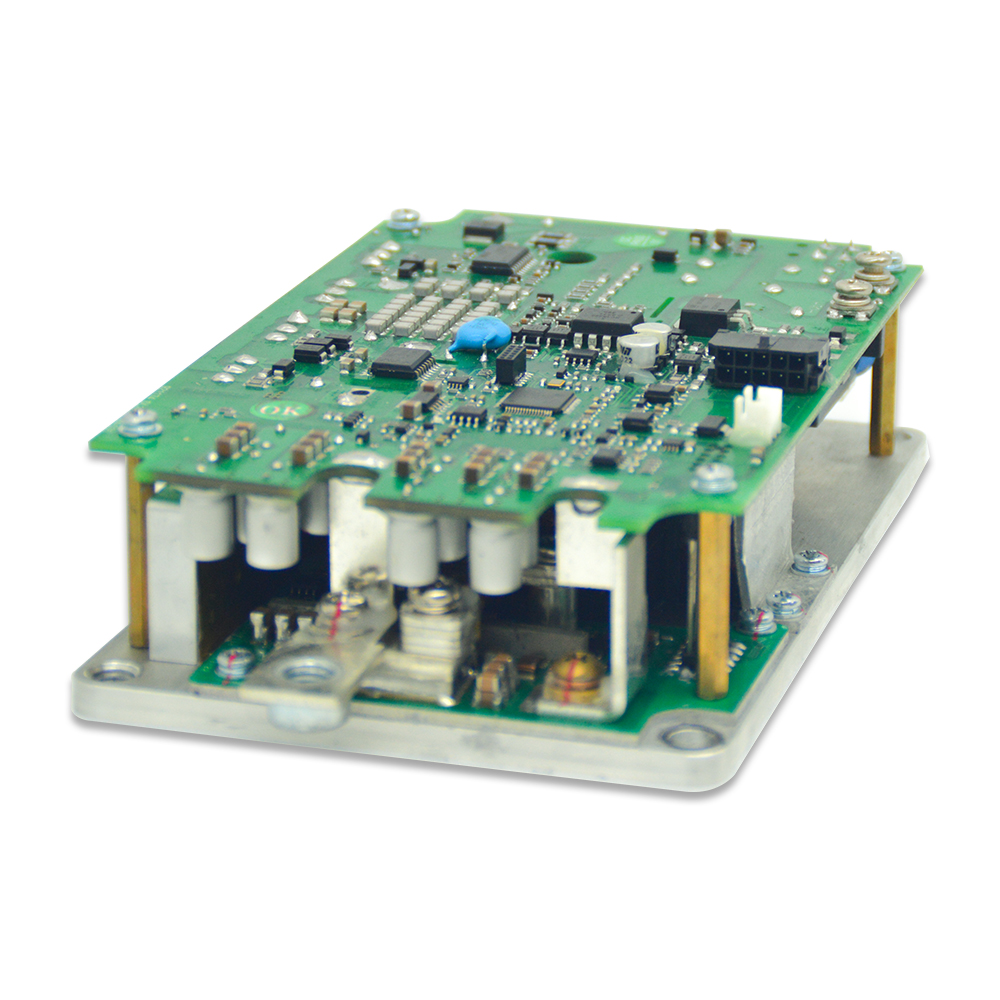

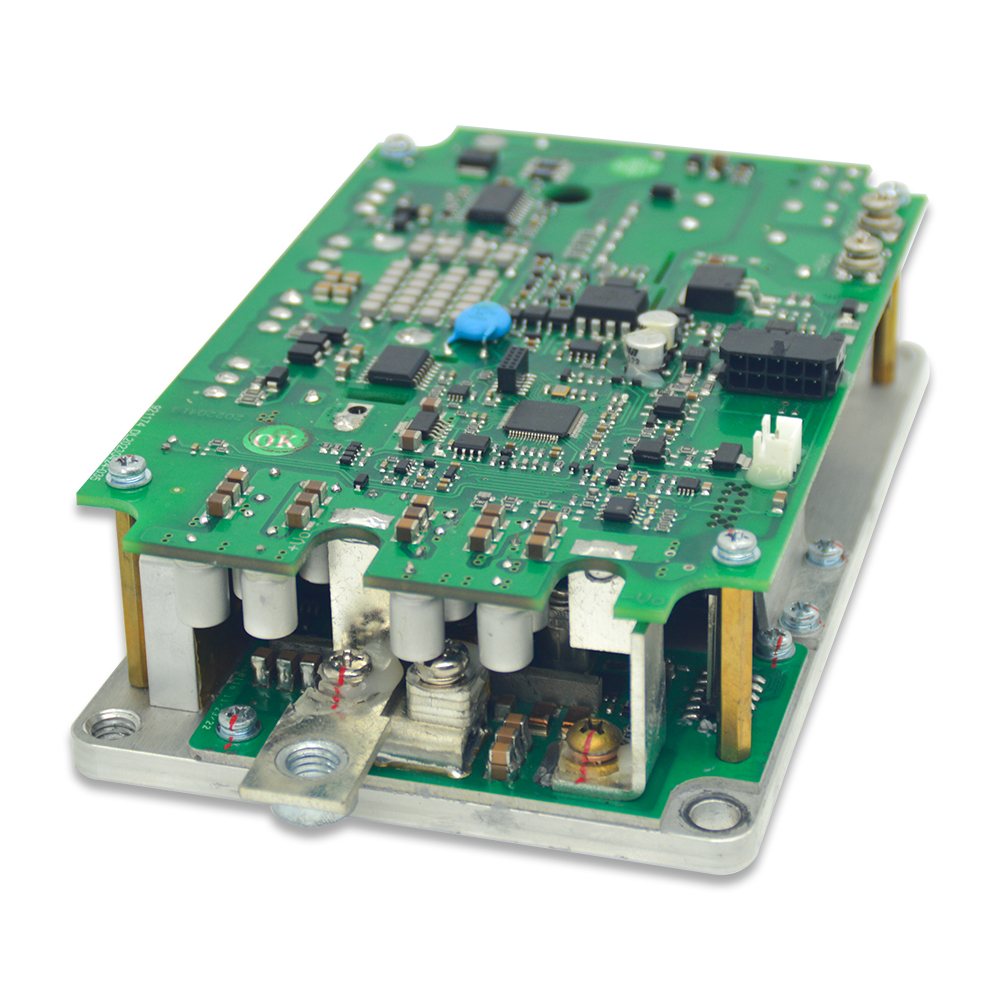

Dilong DE1K8S14 car power supply converter is a high-power, small-volume DC-DC converter specially designed for pure electric vehicle or hybrid electric vehicle.

The DC-DC converter has wide input voltage range and of 200Vdc to 940Vdc, solving the problem of choosing multiple DC converters for different vehicle type, avoiding repeated design and achieving the purpose of generalization and modularization.

It adopts digital processing technology, with CAN communication, able to report data to CAN bus and accept power on command of CAN bus at the same time, monitoring the working status of DCDC converter in real time.

Specification

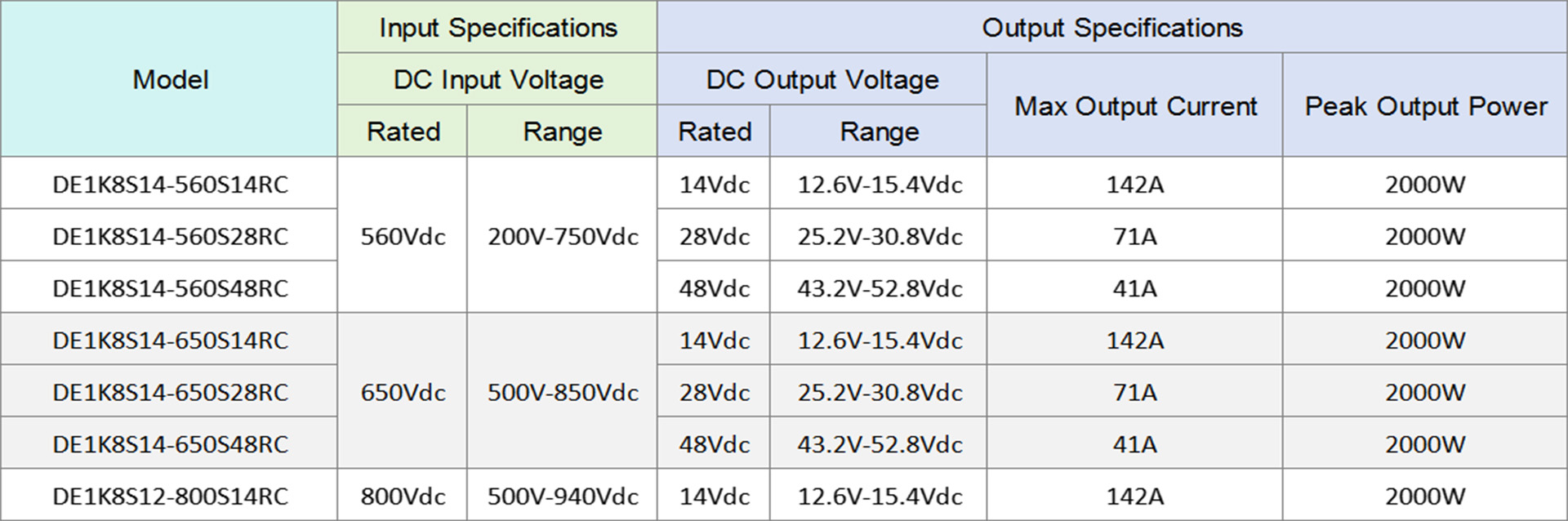

Please refer to the table below for product specifications.

• Product Model

DE1K8S14-560S14RC, DE1K8S14-560S28RC, DE1K8S14-560S48RC, DE1K8S14-650S14RC, DE1K8S14-650S28RC, DE1K8S14-650S48RC, DE1K8S14-800S14RC

• Input Specifications

Rated Input Voltage: 560Vdc, 650Vdc, 800Vdc

Input Voltage Range: 200V~750Vdc, 500V~850Vdc, 500V~940Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc

Max Output Current: 142A, 71A, 41A

Rated/Peak Output Power: 1800W/2000W

Efficiency: ≥92%

Cooling Way: Air Cooling or Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 189*170*50mm

Weight: 1.5kg
