Product Description
Dilong DE1000S9G DC-DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.
It With functions of input over/under voltage protection, output over current protection, over temperature protection,etc. Achieving constant voltage and constant current automatic transfer.
It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.
This DC DC converter car power supply synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant currentfield.
Specification

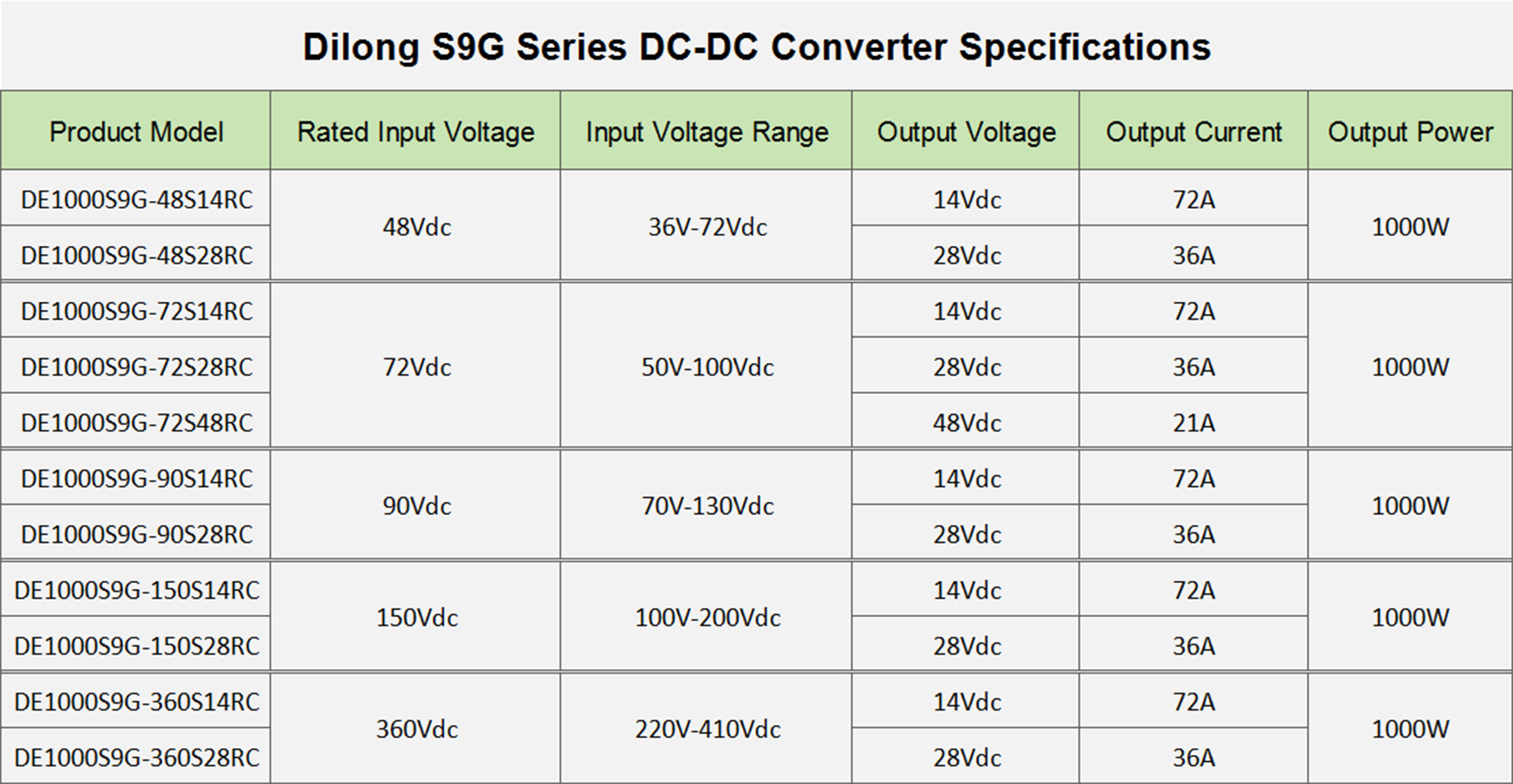

Please refer to the table below for product specifications.
• Product Model
DE1000S9G-48S14RC, DE1000S9G-48S28RC, DE1000S9G-72S14RC, DE1000S9G-72S28RC, DE1000S9G-72S48RC, DE1000S9G-90S14RC, DE1000S9G-90S28RC, DE1000S9G-150S14RC, DE1000S9G-150S28RC, DE1000S9G-360S14RC, DE1000S9G-360S28RC
• Input Specifications
Rated Input Voltage: 48Vdc, 72Vdc, 90Vdc, 150Vdc, 360Vdc
Input Voltage Range: 36V~72Vdc, 50V~100Vdc, 70V~130Vdc, 100V~200Vdc, 220V~410Vdc
• Output Specifications
Output Voltage: 14Vdc, 28Vdc
Output Current: 72A, 36A
Output Power: 1000W
Efficiency: ≥90%
Waterproof Grade: IP67
Cooling Way: Natural Cooling
Control Way: CAN/Enable
Operation Temperature: -30℃～60℃
Storage Temperature: -40℃～105℃
• Dimension and Weight
Dimension(L*W*H): 331*164*60mm
Weight: 4kg
