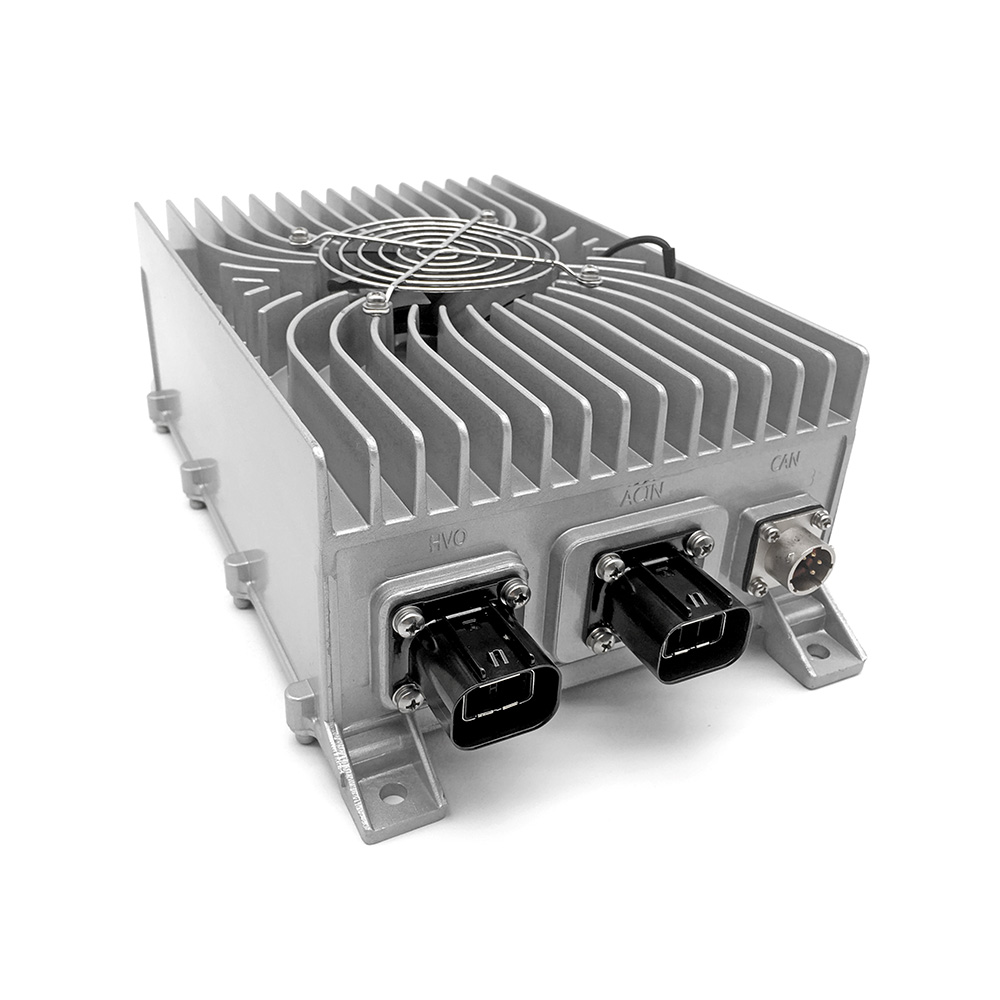

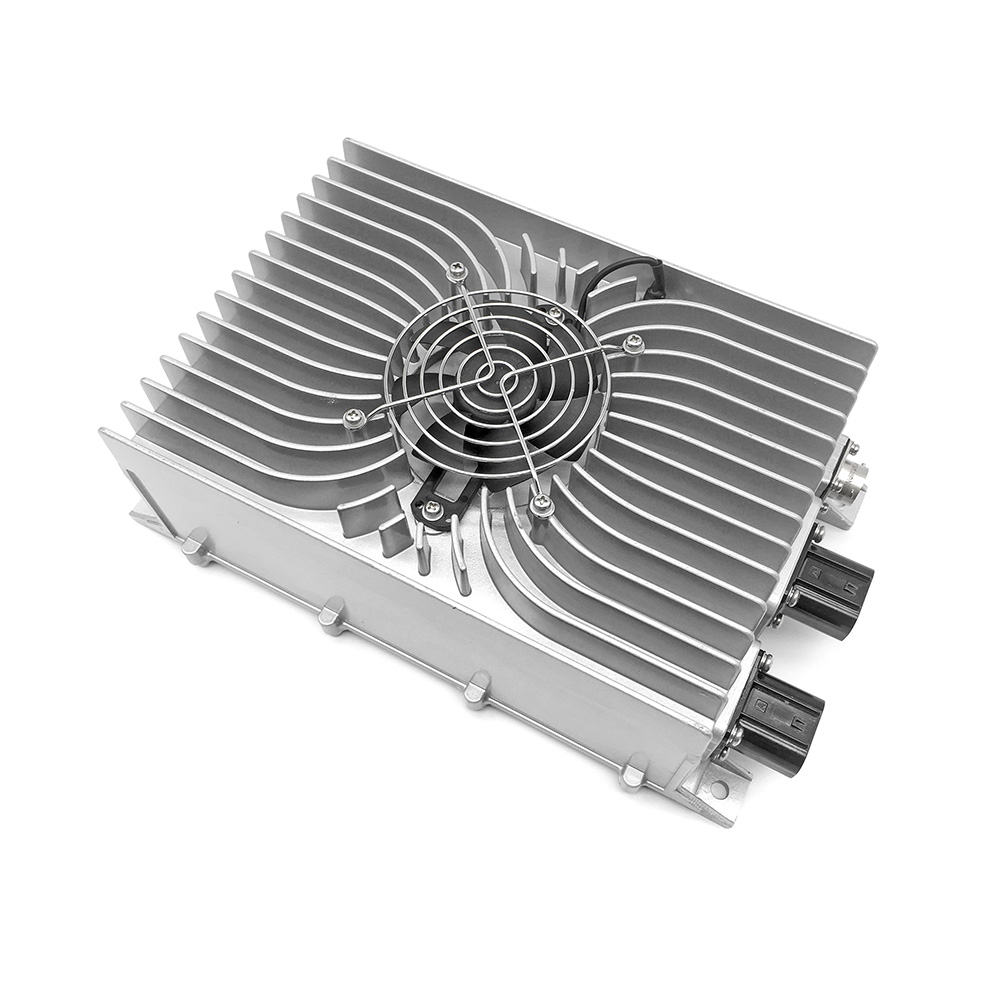

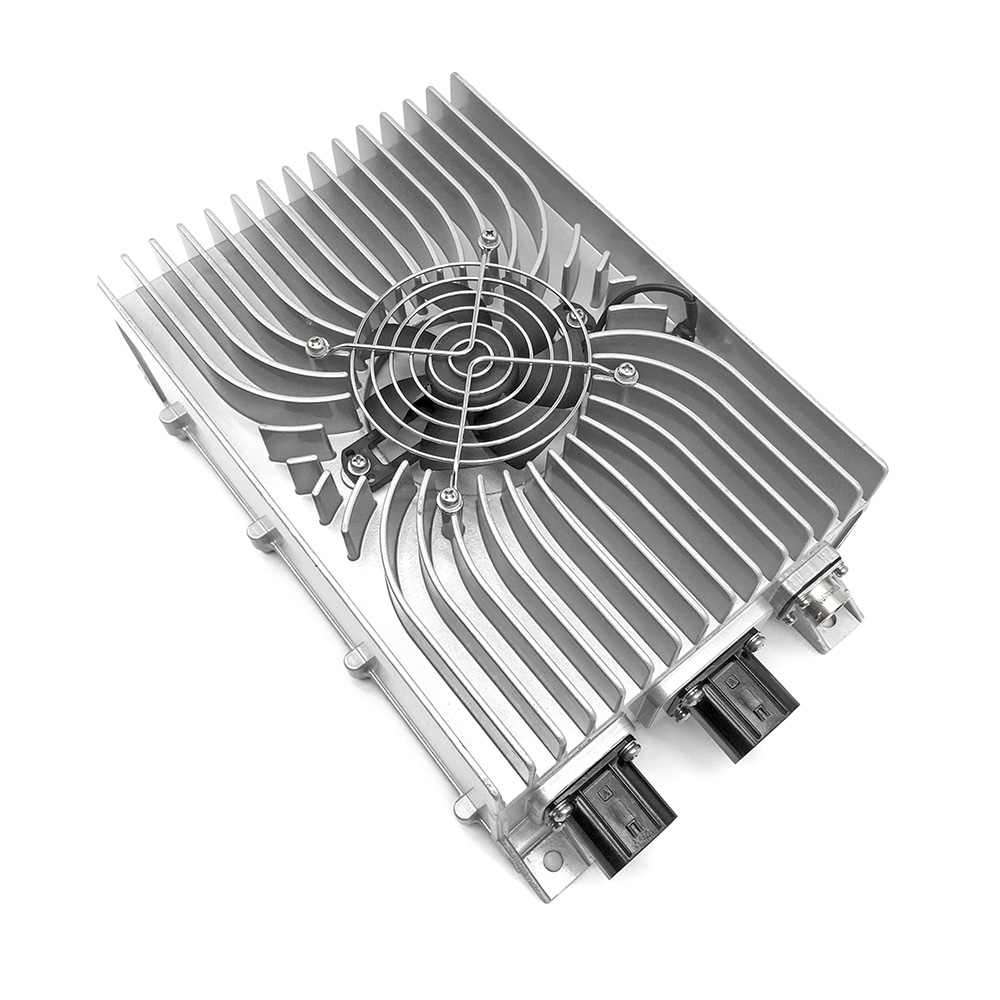

Dilong 3.3kW OBC Air Cooled On Board Charger for Electric Vehicle

Dilong 3.3kW OBC Air Cooled On Board Charger for Electric Vehicle

Model No. Series
DA3K3M17E
AC Input Voltage
220V(85-264V)
DC Output Voltage/Output Power
50V(30-60V)/2.1kW
70V(50-90V)/3.15kW
90V(70-132V)/3.3kW
150V(100-200V)/3.3kW
360V(210-420V)/3.3kW
400V(300-550V)/3.3kW
600V(400-750V)/3.3kW
Quantity
Only 999 left
Volume Pricing
Quantity
Price
1+
$1.00 USD each
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

Description

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

1. DA3K3M17E is an OBC switching power converter. The charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.

2. The charging mode adopts constant power,constant voltage and constant current automatic state transition, which effectively saves charging time.

3. With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol.

4. With intelligent charging function, it has intelligent monitoring fault alarm protection function,programme function and fault inquiry function;

5. it also has built-in 12V independent auxiliary power supply for power supply of car battery management system.

6. This power supply is specially designed for charging high-voltage batteries of new energy vehicles. which is completely synchronized with the world-class automobile power supply manufacturers.

7. The performance indicators have reached or exceeded the international peer level, and the fault-free running time is longer.

8. Wide input voltage range AC85V-AC264V 45Hz-65Hz available for worldwide requirements.

9. Up to 95% power efficiency and more than 94% Full Load Efficiency.

10. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).

11. Operating temperature:- 40℃~80℃; Storage temperature:- 45℃~85℃; Mechanical impact and vibration grade: QC/t 895-2011, Automotive-grade seismic rating.

12. Multi-safety protection functions: Input over/under voltage and reverse polarity protection; Output over current/short circuit and over temp protection.

13. With active power factor correction function, power factor ≥ 0.99, right Low pollution of power grid.

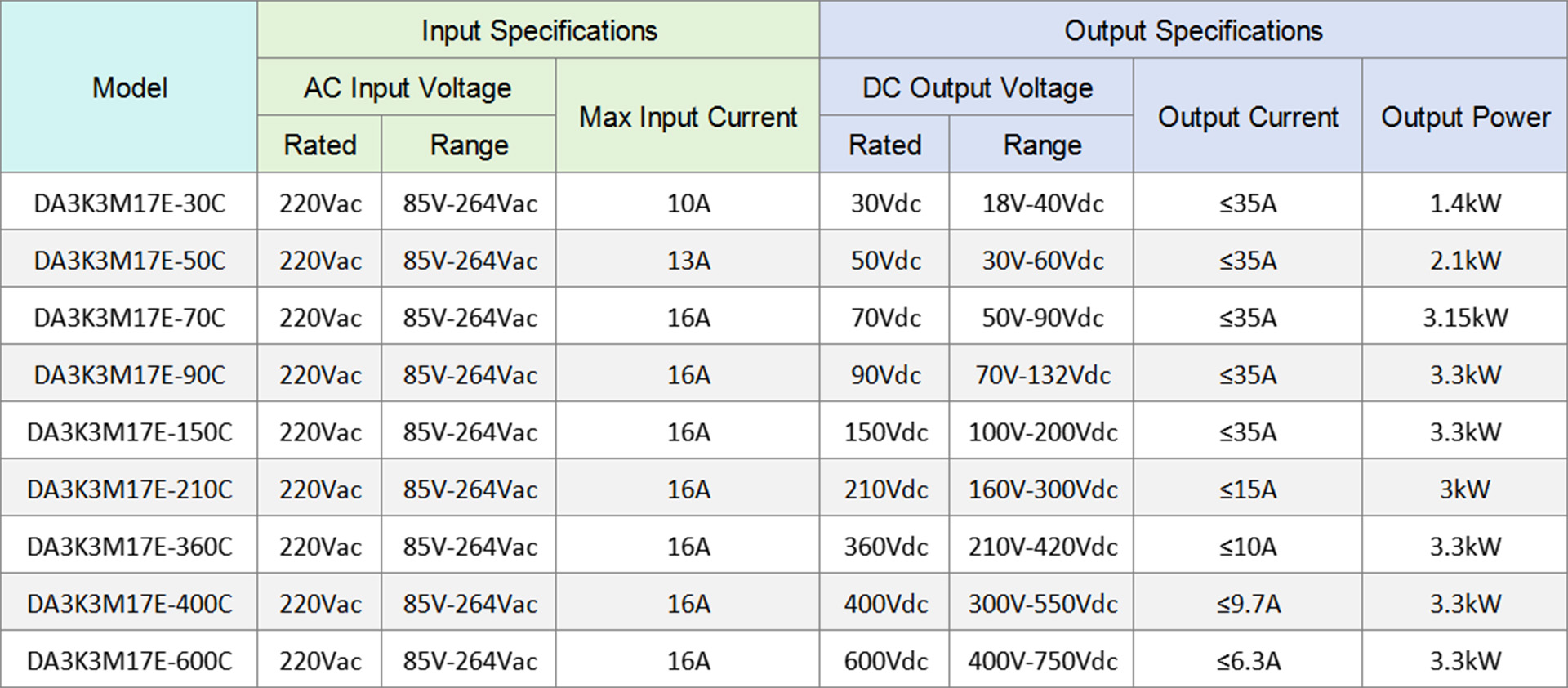

Series Power Model Type of Cooling Output Voltage Output Voltage Range Output Current Output Power
OBC 3.3kW DA3K3M17E-50C Air Cooling 50V 30-60V 35A 2100W@220VAC
OBC 3.3kW DA3K3M17E-70C Air Cooling 70V 50-90V 35A 3150W@220VAC
OBC 3.3kW DA3K3M17E-90C Air Cooling 90V 70-132V 35A 3300W@220VAC
OBC 3.3kW DA3K3M17E-150C Air Cooling 150V 100-200V 22A 3300W@220VAC
OBC 3.3kW DA3K3M17E-360C Air Cooling 360V 210-420V 9.16A 3300W@220VAC
OBC 3.3kW DA3K3M17E-400C Air Cooling 400V 300-550V 8.25A 3300W@220VAC
OBC 3.3kW DA3K3M17E-600C Air Cooling 600V 400-750V 5.5A 3300W@220VAC
