Dilong 3.3kW OBC 90V 70-132V Air Cooled On-Board Charger for EV

CLOSE

Dilong 3.3kW OBC 90V 70-132V Air Cooled On-Board Charger for EV-Dilong Charger
Dilong 3.3kW OBC 90V 70-132V Air Cooled On-Board Charger for EV-Dilong Charger

Dilong 3.3kW OBC 90V 70-132V Air Cooled On-Board Charger for EV

Dilong 3.3kW OBC 90V 70-132V Air Cooled On-Board Charger for EV

$445.00 USD
$0.00 USD

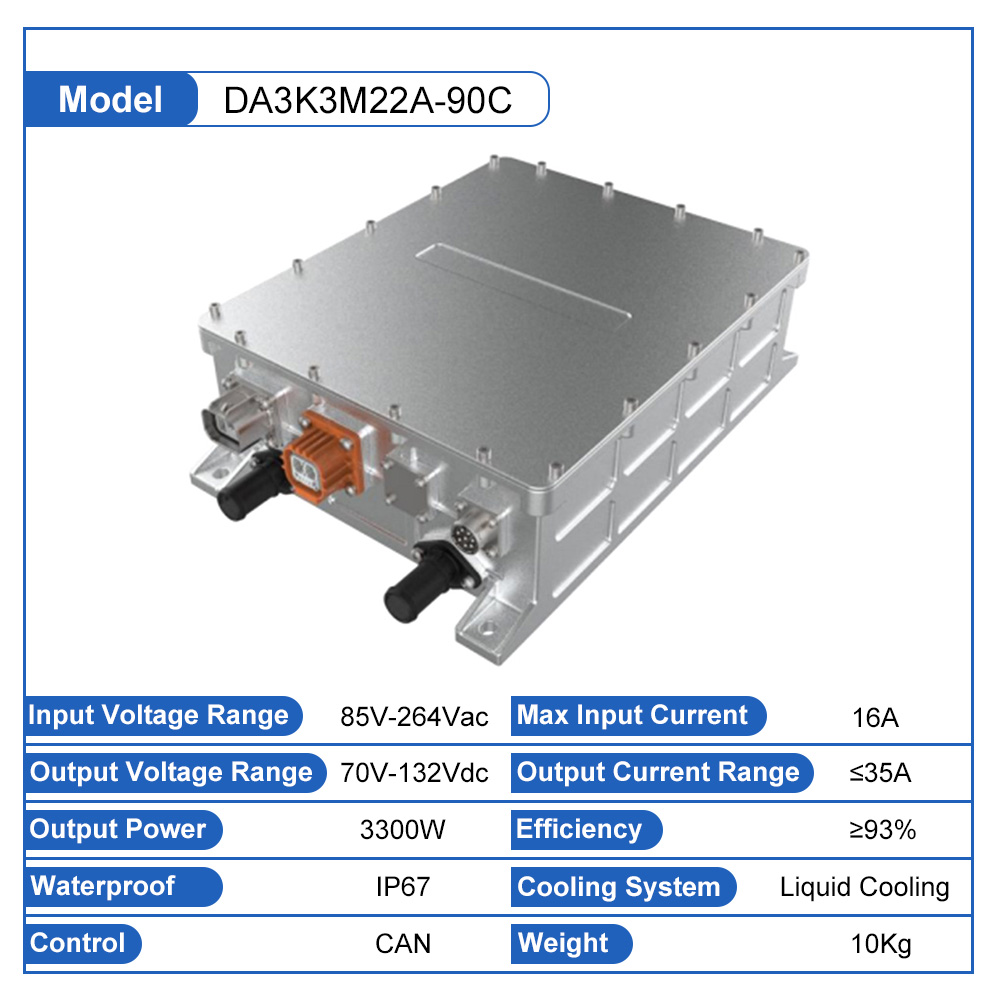

Model
DA3K3M22A-90C
Input Voltage
220Vac(85-264Vac)
Output Voltage/Power
90Vdc(70-132Vdc)/3.3kW
Quantity
Only 1000 left
Volume Pricing
Quantity
Price
1+
$445.00 USD each
For sample price of 1-10 units, please contact Dilong for a quote.
Support Wholesale Customized
Worldwide Shipping
Carbon neutral

Description

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

1. DA3K3M22A-90C is an OBC switching power converter. The charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.

2. The charging mode adopts constant power, constant voltage and constant current automatic state transition, which effectively saves charging time.

3. With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol.

4. With intelligent charging function, it has intelligent monitoring fault alarm protection function, program me function and fault inquiry function.

5. it also has built-in 12V independent auxiliary power supply for power supply of car battery management system.

6. This power supply is specially designed for charging high-voltage batteries of new energy vehicles. which is completely synchronized with the world-class automobile power supply manufacturers. The performance indicators have reached or exceeded the international peer level, and the fault-free running time is longer.

7. Rated Output Power: 3300W

8. AC Input Voltage: 220Vac(85-264Vac)

9. DC Output Voltage: 90Vdc(70-132V)

10. Efficiency at Full Loading: 93%

11. Protection Grade: IP67 Waterproof

12. Operation Temperature: -40℃~80℃

13. Storage Temperature: -45℃~85℃

14. Control: CAN

15. Cooling Way: Liquid Cooling

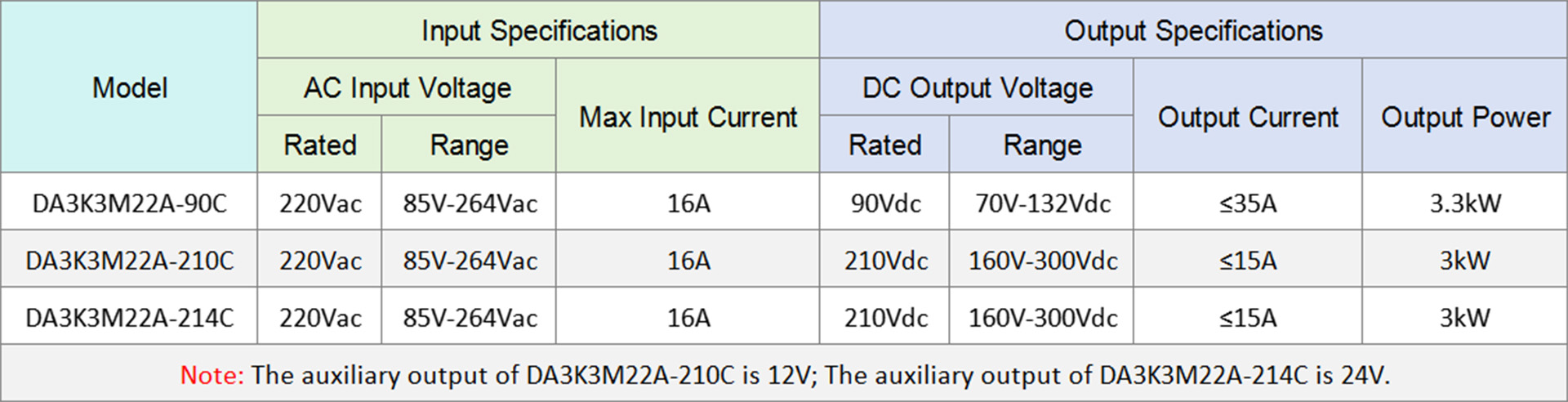

Model Type of Cooling AC Input Voltage Input Voltage Range Max Input Current DC Output Voltage Output Voltage Range Rated Output Power
DA3K3M22A-90C Liquid Cooling 220Vac 85-264Vac 16A 90Vdc 70-132Vdc 3300W
