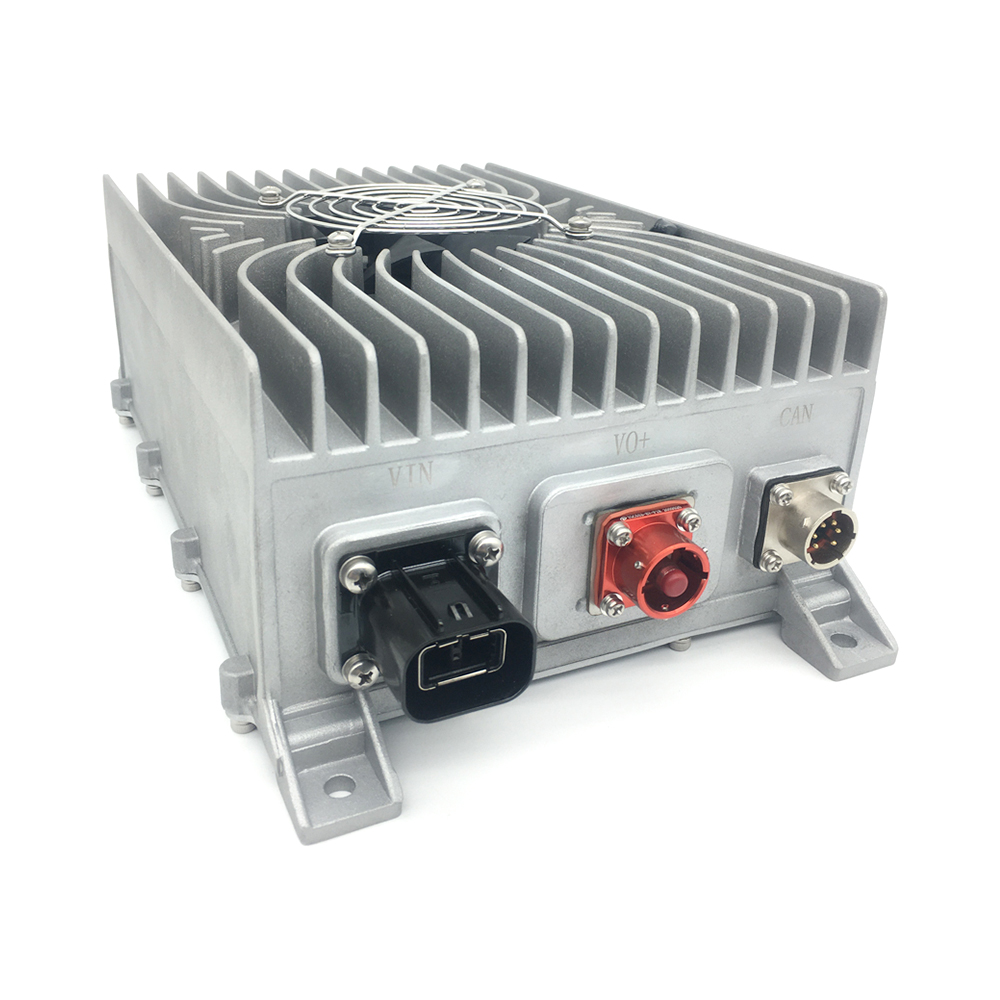

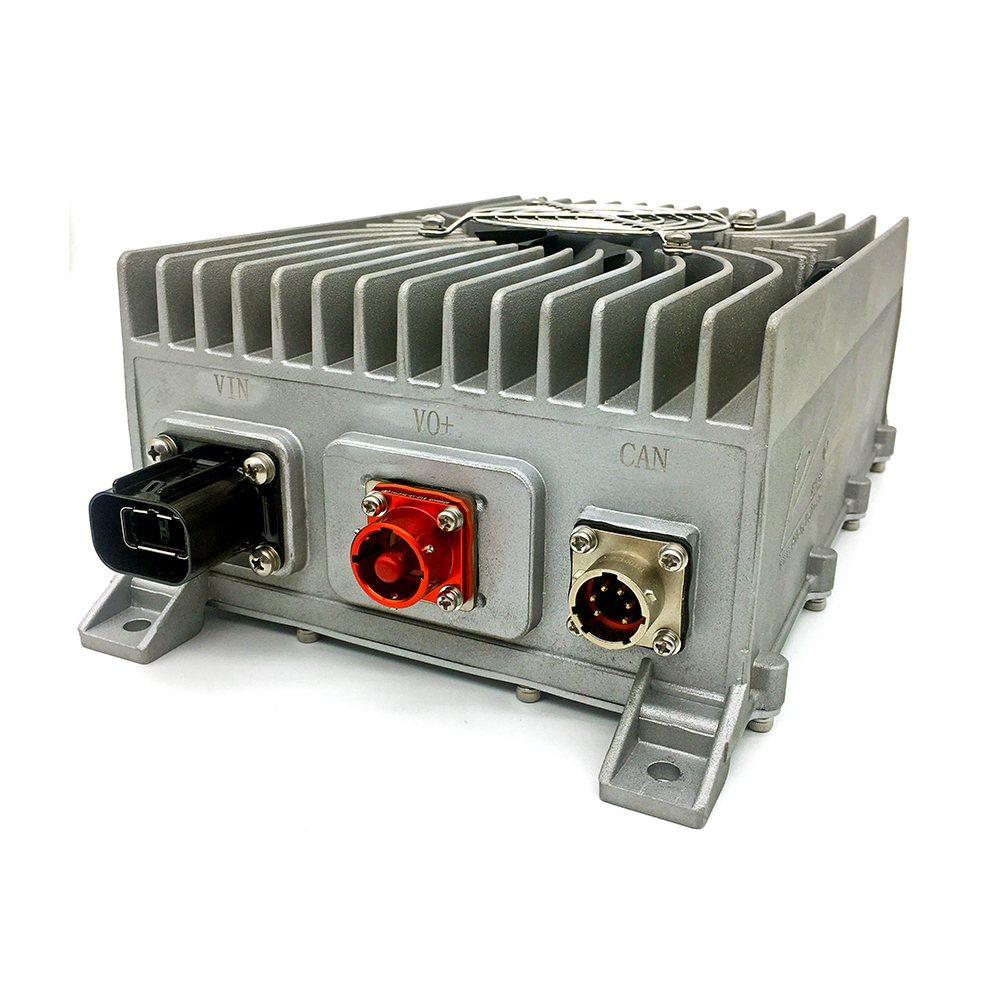

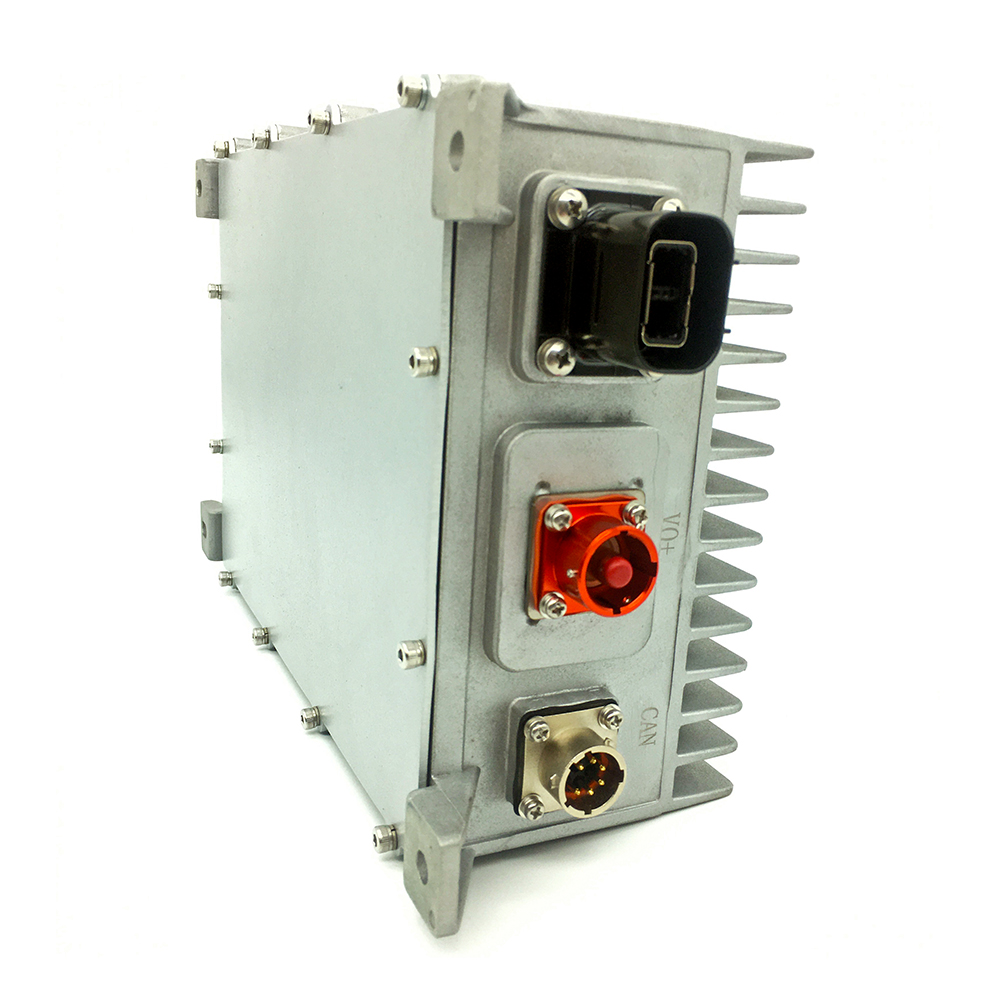

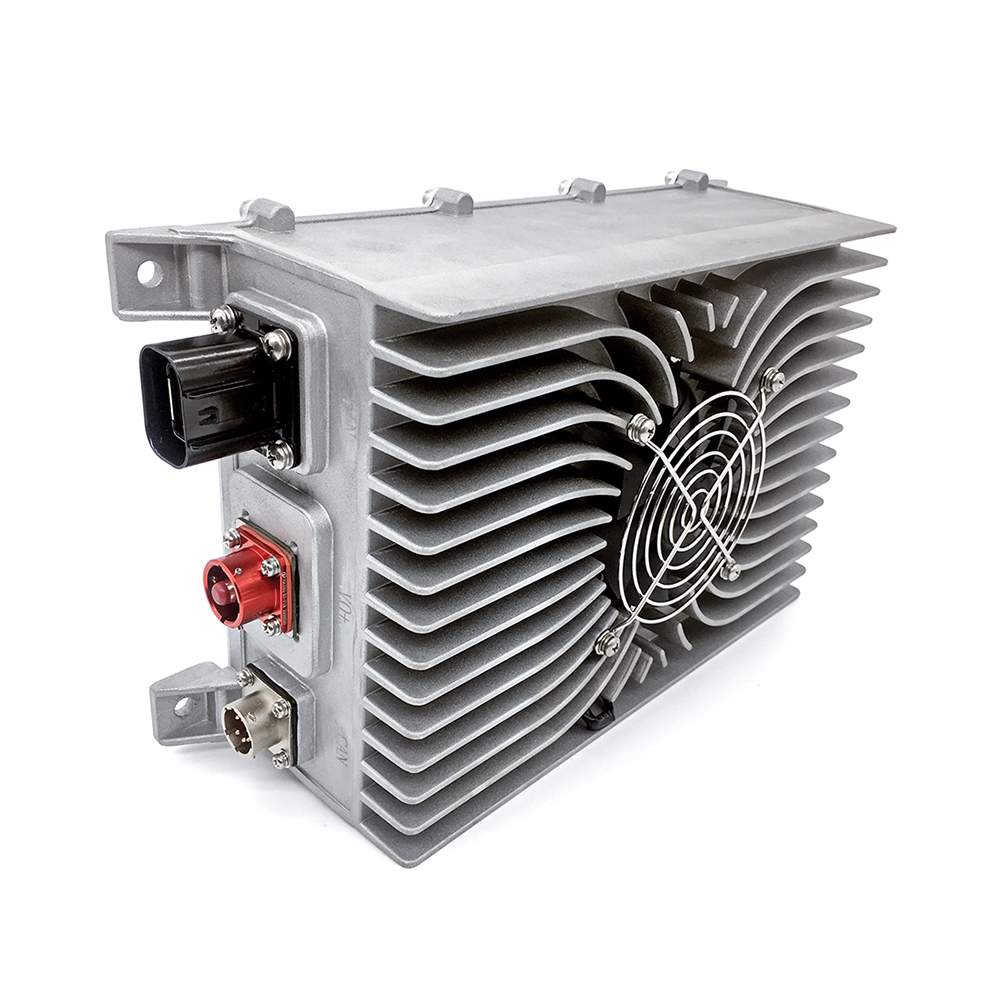

Dilong 3kW Air Cooled DC/DC Charger Converter for EV

Dilong 3kW Air Cooled DC/DC Charger Converter for EV

Model
DE3KM17B
Input Voltage Rated/Range
560V(200-750Vdc)
650V(500-850Vdc)
Output Voltage Rated/Range
14V(12.6-15.4Vdc)
28V(25.2-30.8Vdc)
48V(43.2-52.8Vdc)
Quantity
Only left
Volume Pricing
Quantity
Price
1+
undefined each
For sample price of 1-10 units, please contact Dilong for a quote.
Support Wholesale Customized
Worldwide Shipping
Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)


Product Description

Dilong DE3KM17B car power supply converter is a high-power, small-volume DC DC converter specially designed for electric vehicles.

The converter has an ultra-wide input range, which solves the trouble of choosing a variety of DC converters for different models, avoids repeated design, and achieves the purpose of generalization and modularization. It adopts digital processing technology and has its own CAN communication, 250kbps 500kbps adaptive baud rate. which can report data to CAN bus, and at the same time accept the switch command of CAN bus, which can control and monitor the working status of DC converter in real time.

Supporting the digital adaptive redundant parallel current sharing technology, this current sharing technology relies on automobile CAN bus network and uses random algorithm to automatically generate the module. Each module reads the local power, voltage, current and other parameters from each other, so that each module can compare, its own operation data with the data of each module in the system; adjust the output voltage, current and output power through PID, ensure that each module outputs same power on the basis of the same voltage. So as to ensure that output current of each power is the same and achieve the effect of current sharing.

Specification

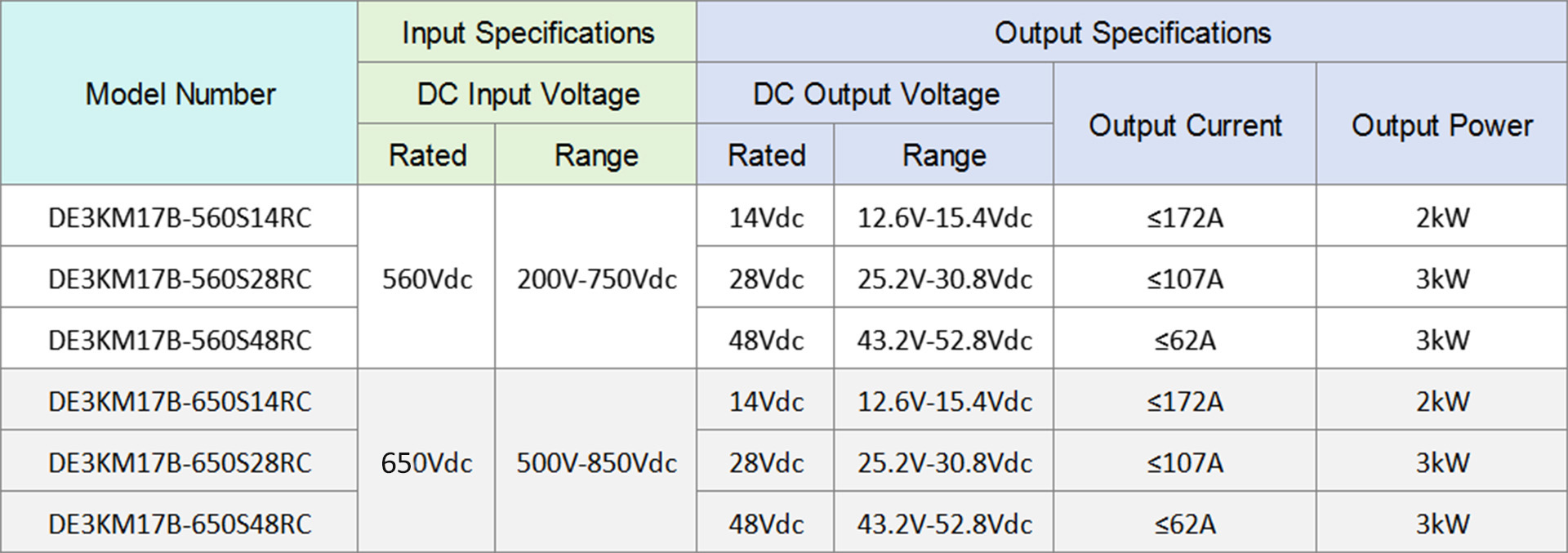

Please refer to the table below for product specifications.

• Product Model

DE3KM17B-560S14RC, DE3KM17B-560S28RC, DE3KM17B-560S48RC

DE3KM17B-650S14RC, DE3KM17B-650S28RC, DE3KM17B-650S48RC

• Input Specifications

Input Voltage Range: 200V~750Vdc, 500V~850Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc

Output Power: 2000W, 3000W


Efficiency: ≥92%

Waterproof Grade: IP66

Cooling Way: Air Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃~60℃

Storage Temperature: -40℃~105℃

• Dimension and Weight

Dimension(L*W*H): 316*194*108mm

Weight: 6kg

☞ If you have any questions about this product, please contact us at dilong@dilongkeji.com, Best wishes.

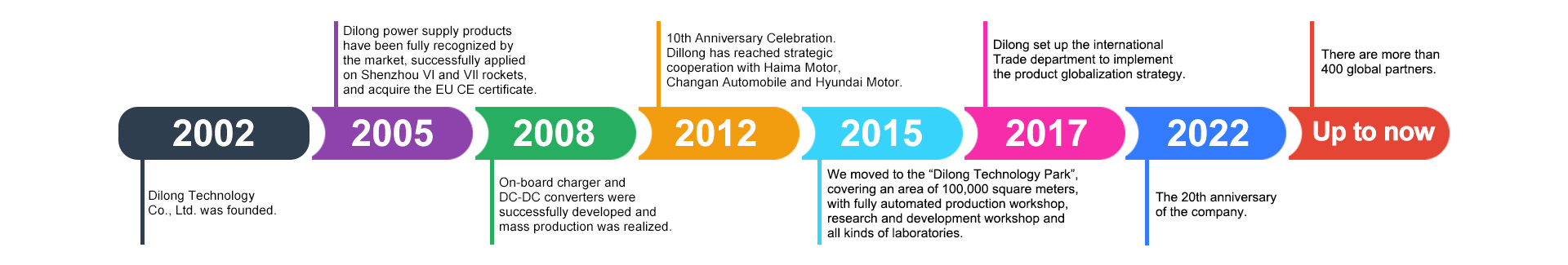

Development History
Leading supplier of professional power supply
Products quality and service of first class

Our Honor

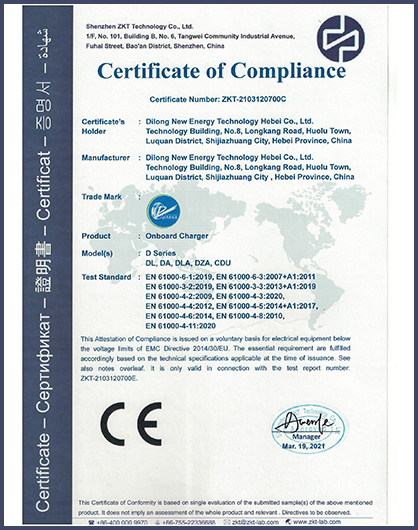

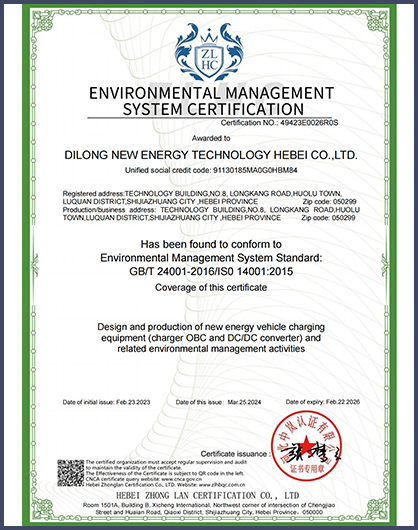

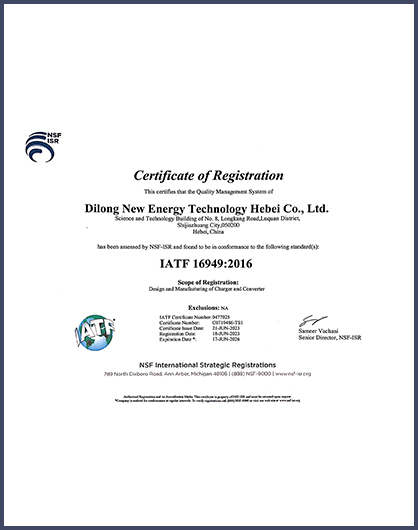

IATF16949, ISO14001, RoHs, CE, ISO9001
Utility model patent certificate

Dilong Factory
We are manufacturers. Welcome to visit our factory.

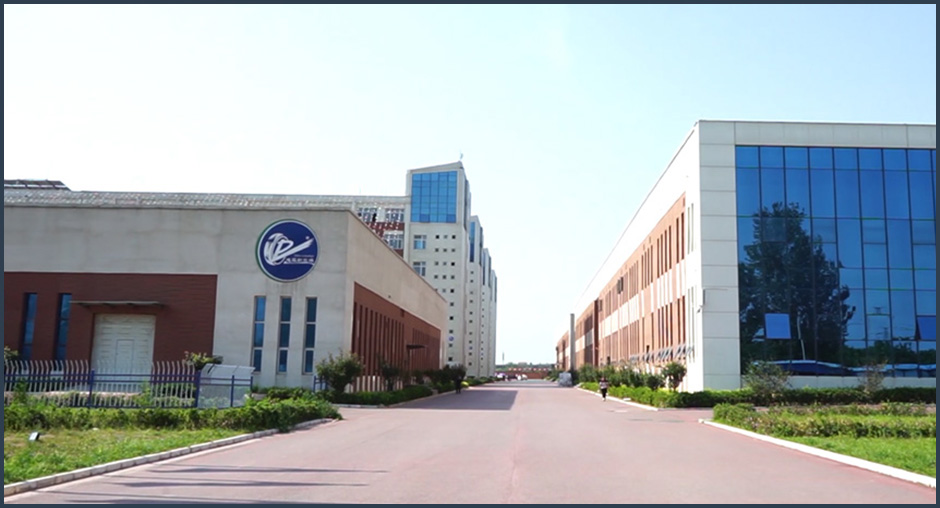

Factory Exterior
Factory Exterior

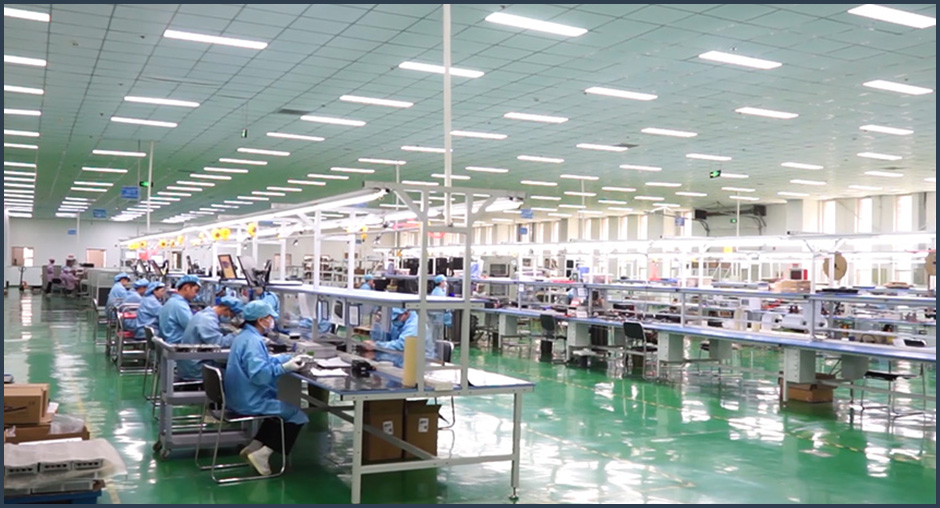

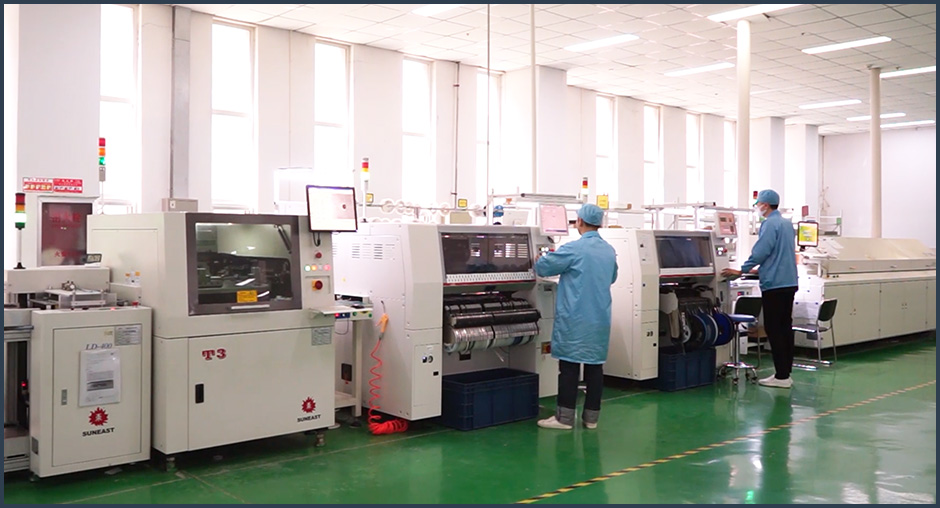

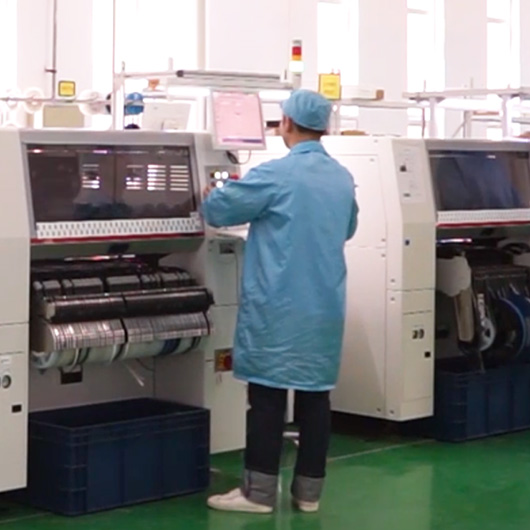

SMT Workshop
SMT Workshop

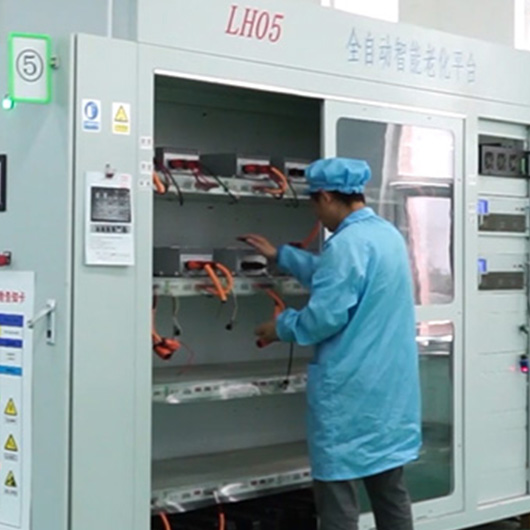

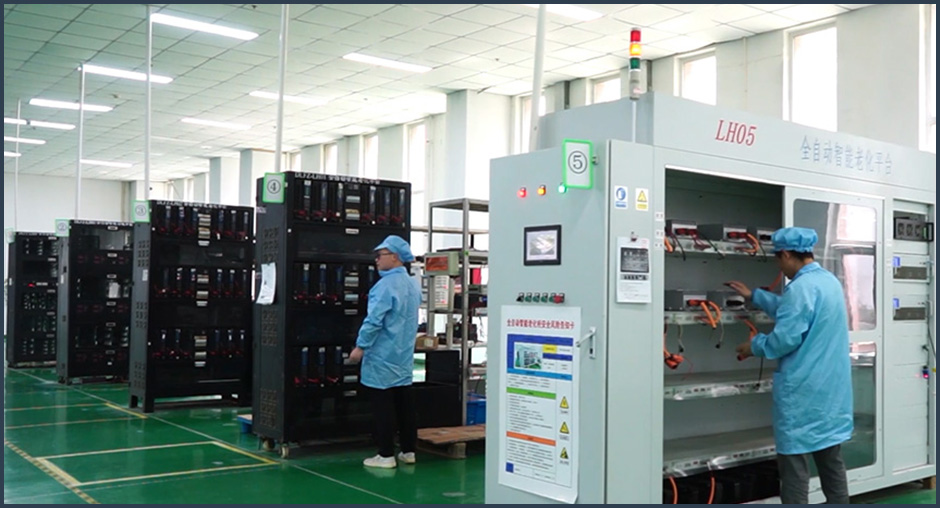

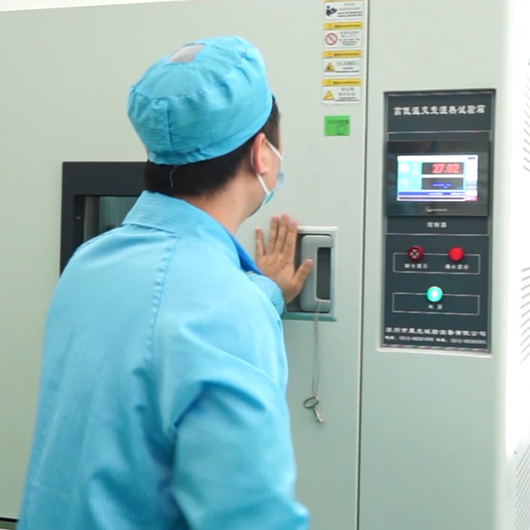

Aging Workshop
Aging Workshop

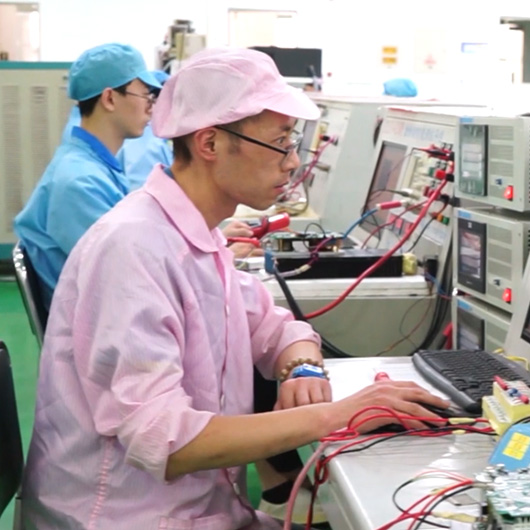

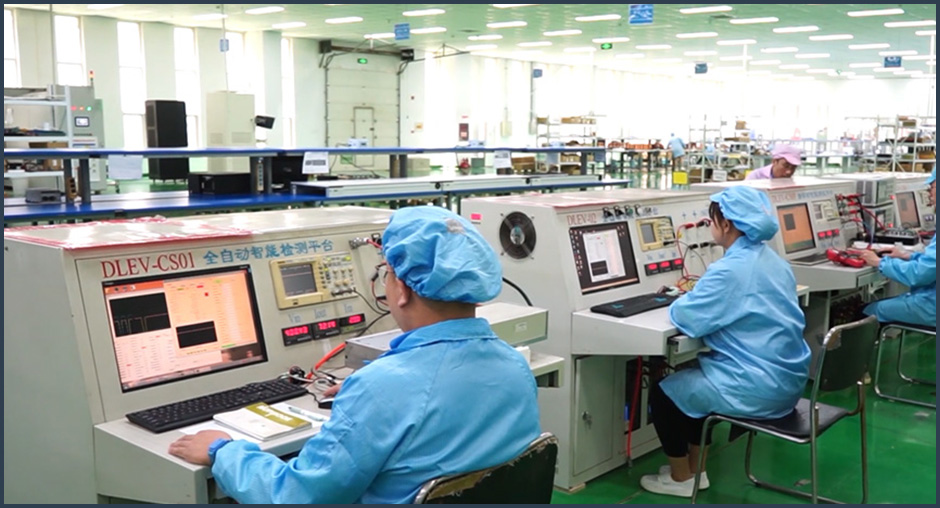

Quality Inspection
Quality Inspection

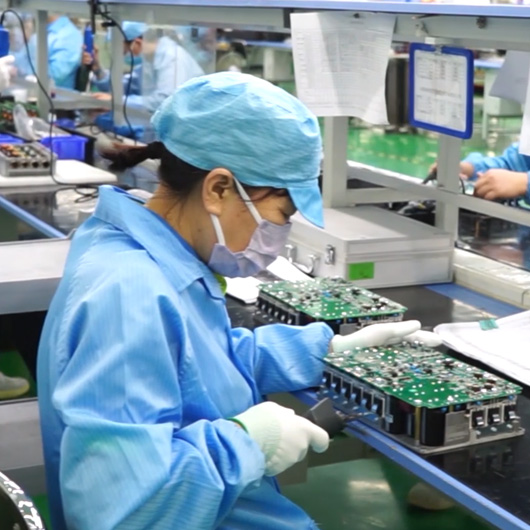

Assembly Plant
Assembly Plant

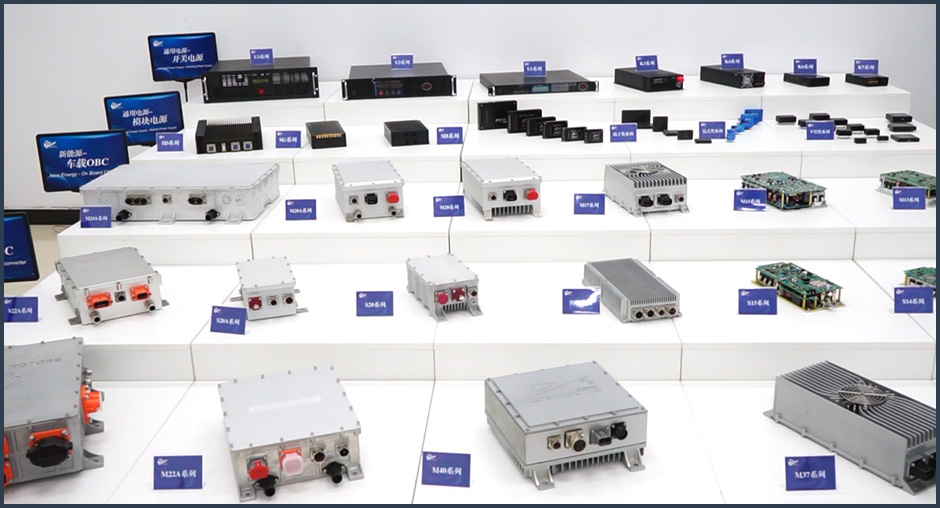

Product Display
Product Display

Ten Production Flow of Dilong
Dilong regards product quality as company life and strictly control all process links during production. From producing raw materials to finished products, adopting advanced and scientific production process, efficient production process, advanced detection and monitoring equipment, and continuous innovation, then we can ensure the high-efficiency and reliable quality of products.

Components testing and selection
Components testing and selection

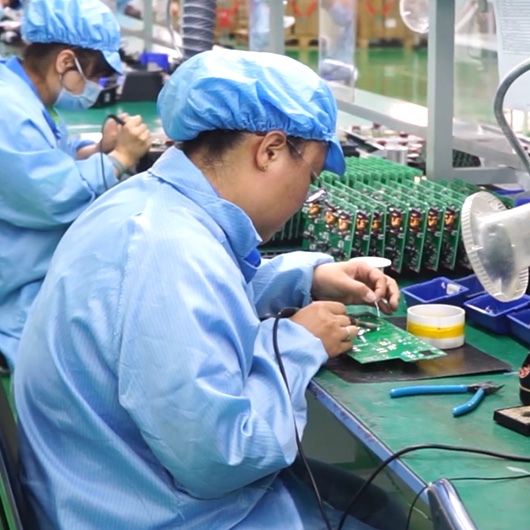

Components SMT automatically welding
Components SMT automatically welding
AOI automatically welding testing
AOI automatically welding testing
Automatically software programmed
Automatically software programmed
Automatically assemble and sealing
Automatically assemble and sealing

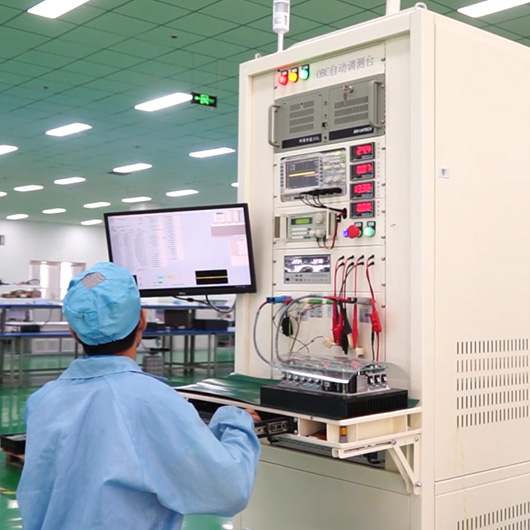

Automatically products parameter proofreading
Automatically products parameter proofreading
8 hours 100% automatically aging test
8 hours 100% automatically aging test
100%
automatically testing of 28 items
100%
automatically testing of 28 items
100%
human testing of 60 items
100%
human testing of 60 items

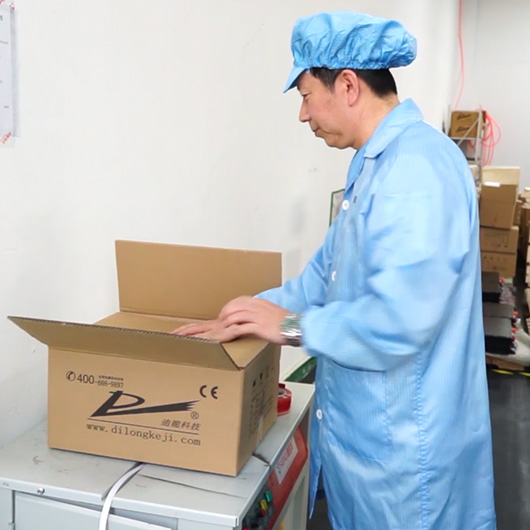

Plywood
