Dilong 3kW Liquid Cooled DC-DC Charger Converter for Electric Vehicle

Name: Dilong 3kW Liquid Cooled DC-DC Charger Converter for Electric Vehicle
Price: 1285 USD
Availability: InStock

Dilong 3kW Liquid Cooled DC-DC Charger Converter for Electric Vehicle

Model

DE3KS21A

Input Voltage Rated/Range

560V(200-750Vdc)

650V(500-850Vdc)

800V(500-940Vdc)

Output Voltage Rated/Range

14V(12.6-15.4Vdc)

28V(25.2-30.8Vdc)

48V(43.2-52.8Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

Dilong DE3KS21A EV DC DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology. 250kbps 500kbps adaptive baud rate.

With functions of input over/under voltage protection, output over current protection, over temperature protection,etc. Achieving constant voltage and constant current automatic transfer. It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.

Adopting liquid cooling design, synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

Specification

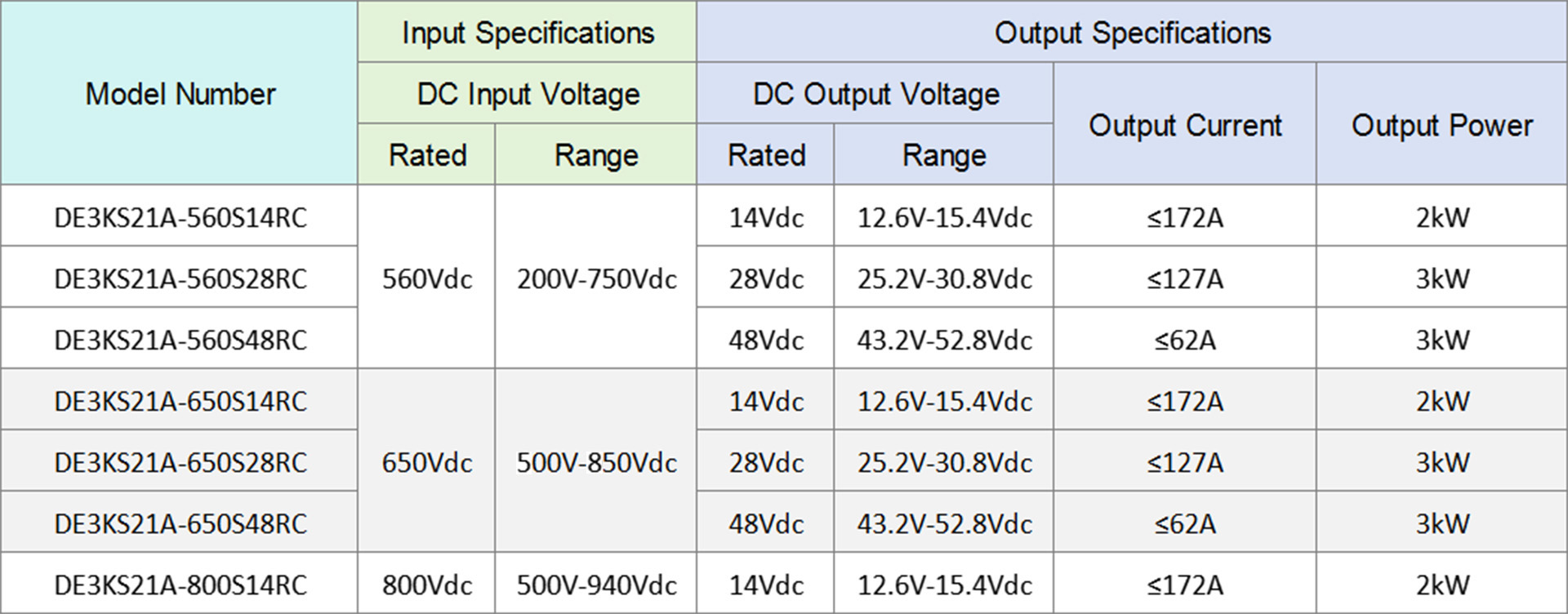

Please refer to the table below for product specifications.

• Product Model

DE3KS21A-560S14RC, DE3KS21A-560S28RC, DE3KS21A-560S48RC

DE3KS21A-650S14RC, DE3KS21A-650S28RC, DE3KS21A-650S48RC, DE3KS21A-800S14RC

• Input Specifications

Input Voltage Range: 200V~750Vdc, 500V~850Vdc, 500V~940Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc

Output Power: 2000W, 3000W

Efficiency: ≥92%

Waterproof Grade: IP67

Cooling Way: Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 307*164*89mm

Weight: 4kg
