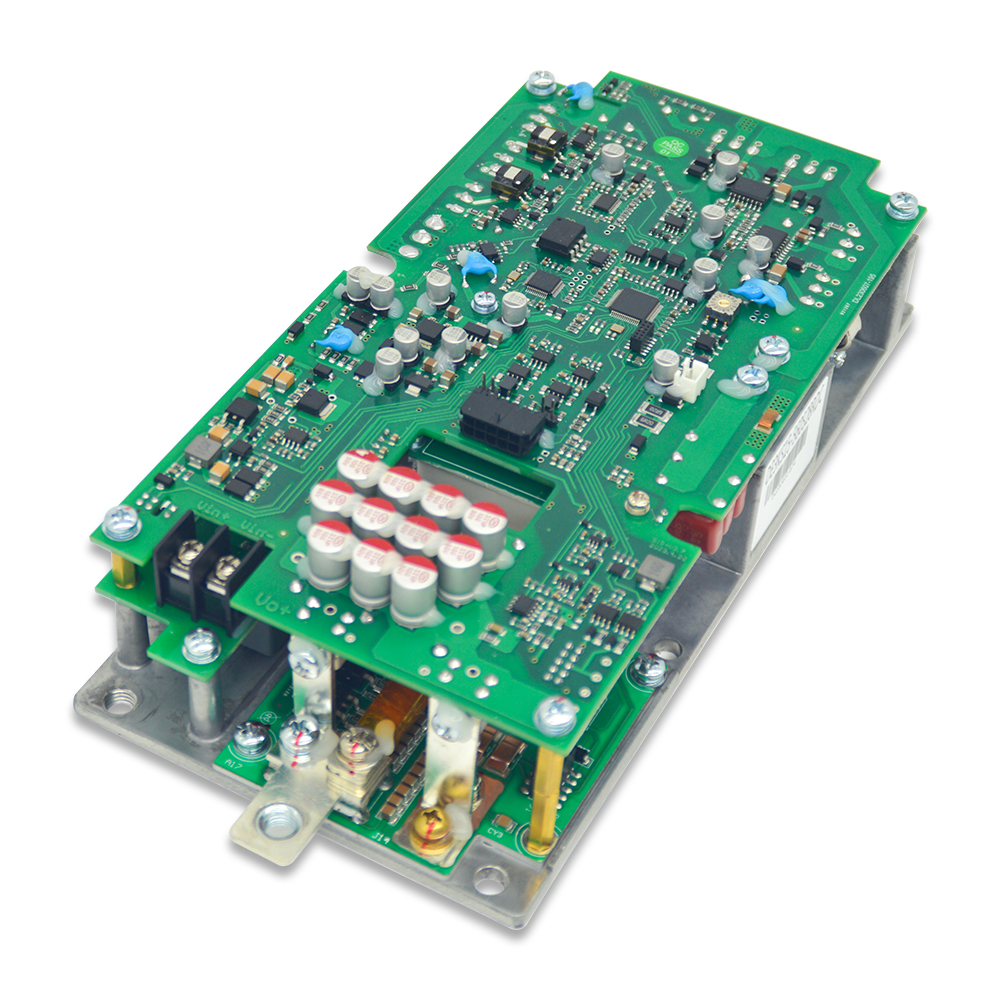

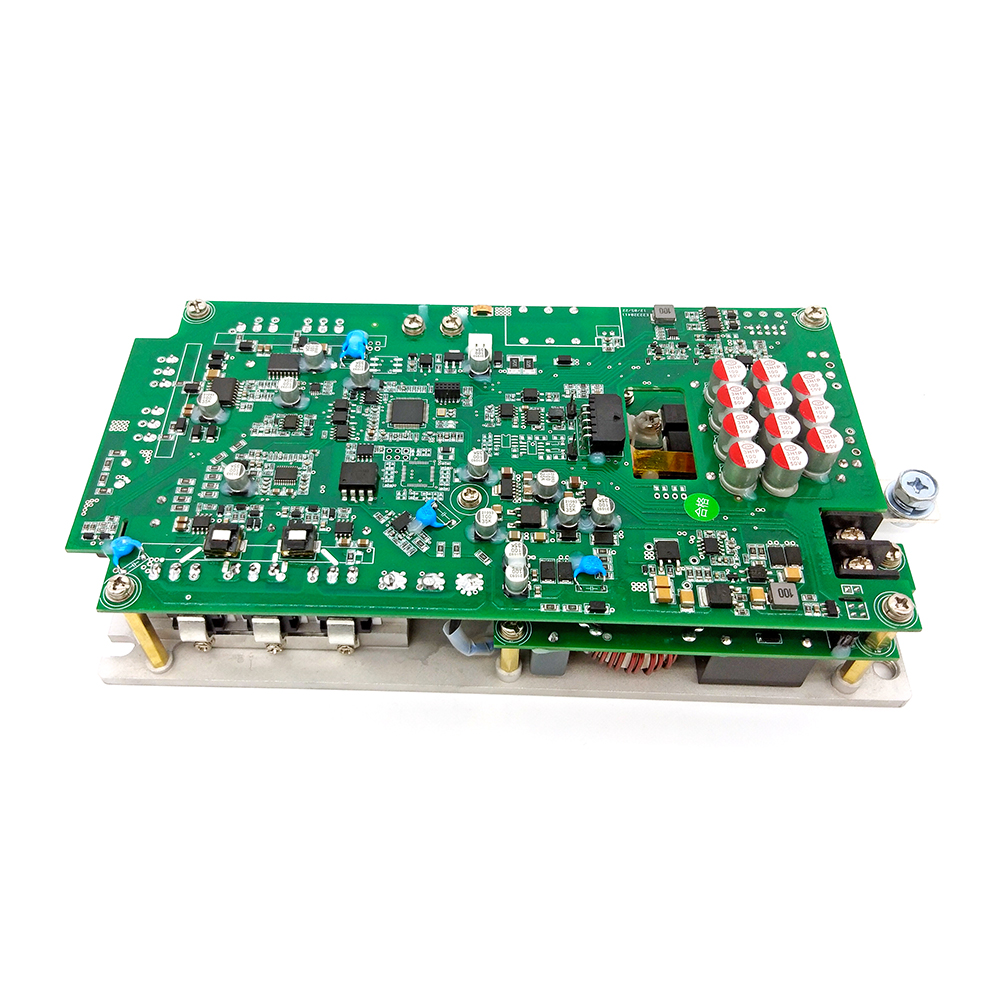

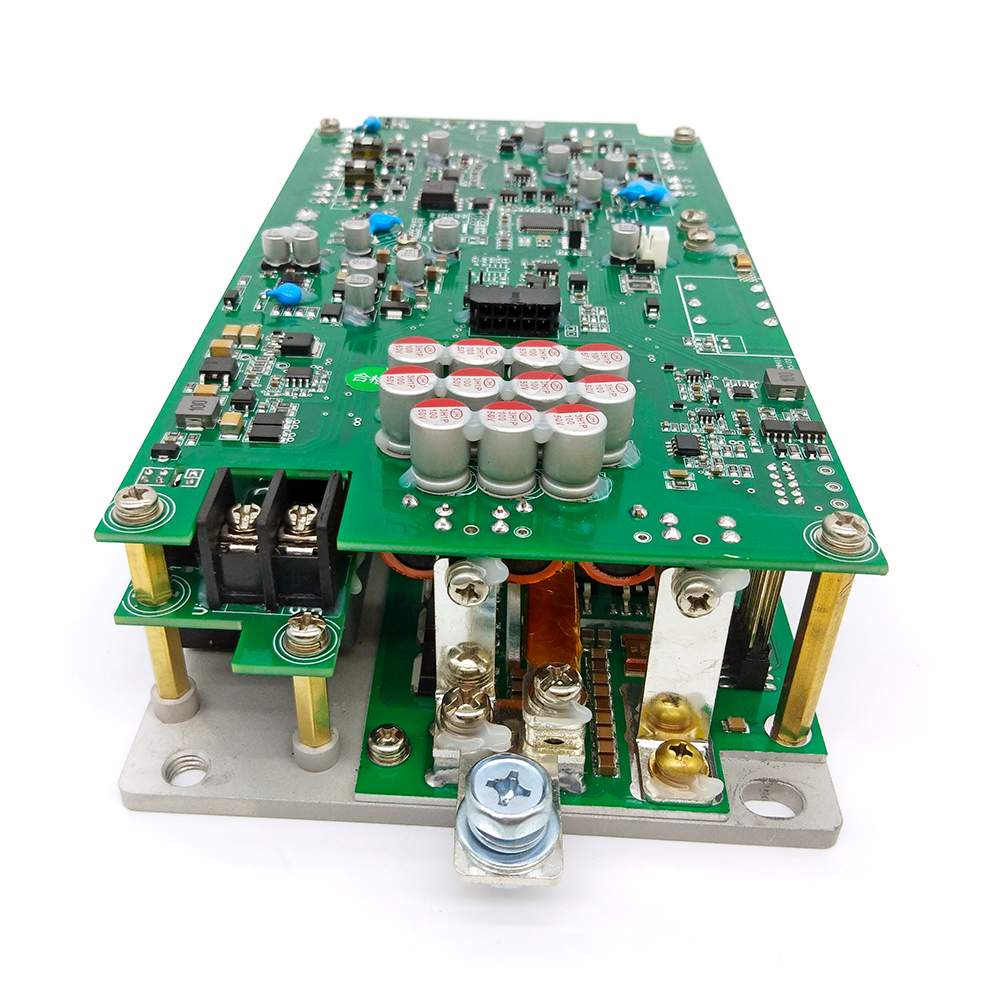

Dilong 3kW Open Frame DC/DC Charger Converter Module for EV Car

Name: Dilong 3kW Open Frame DC/DC Charger Converter Module for EV Car
Price: 1000 USD
Availability: InStock

Dilong 3kW Open Frame DC/DC Charger Converter Module for EV Car

Model

DE3KS15

Input Voltage Rated/Range

560V(200-750Vdc)

650V(500-850Vdc)

800V(500-940Vdc)

Output Voltage Rated/Range

14V(12.6-15.4Vdc)

28V(25.2-30.8Vdc)

48V(43.2-52.8Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

Dilong DE3KS15 car power supply converter is a high-power, small-volume DC-DC converter specially designed for electric vehicles.

The converter has wide input voltage range and of 200Vdc to 940Vdc, solving the problem of choosing multiple DC converters for different vehicle type, avoiding repeated design and achieving the purpose of generalization and modularization.

It adopts digital processing technology, with CAN communication, able to report data to CAN bus and accept power on command of CAN bus at the same time, monitoring the working status of DCDC converter in real time.

Specification

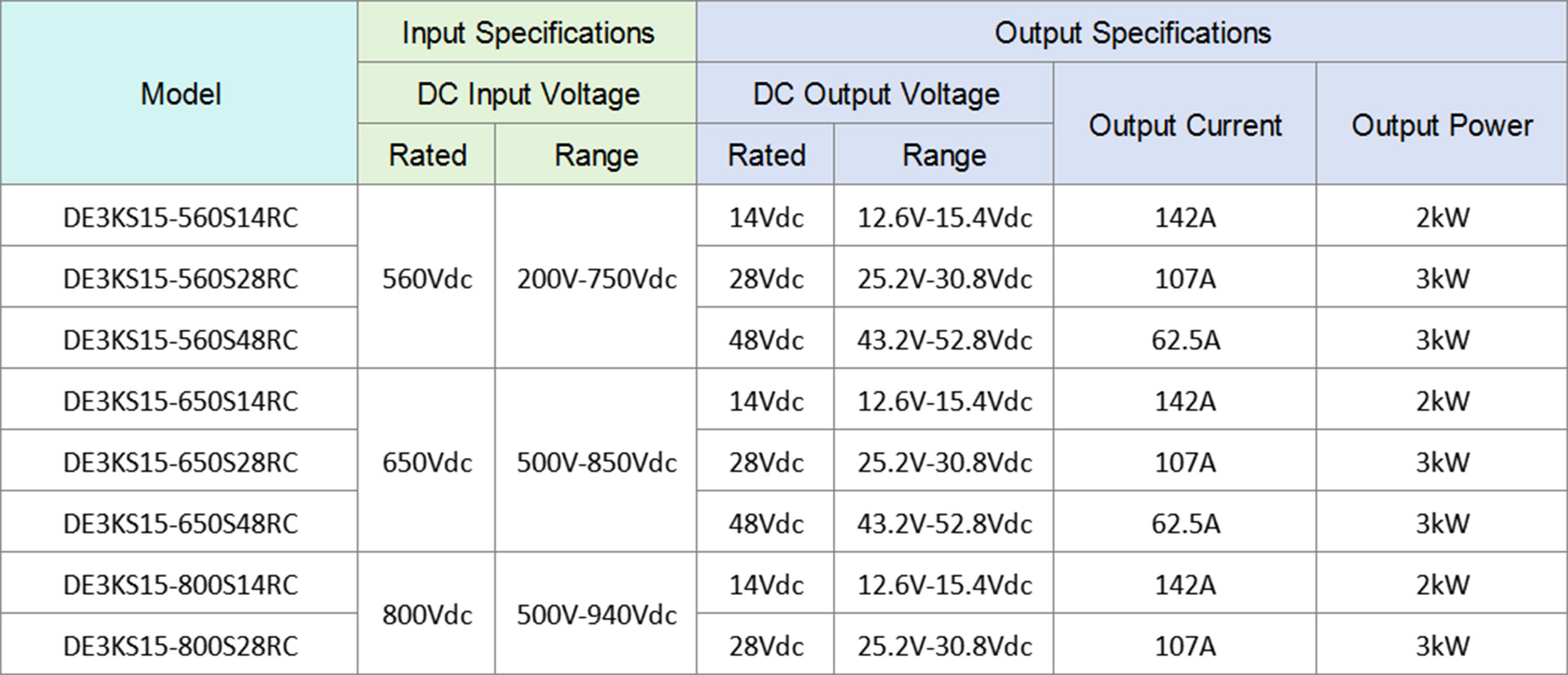

Please refer to the table below for product specifications.

• Product Model

DE3KS15-560S14RC, DE3KS15-560S28RC, DE3KS15-560S48RC

DE3KS15-650S14RC, DE3KS15-650S28RC, DE3KS15-650S48RC

DE3KS15-800S14RC, DE3KS15-800S28RC

• Input Specifications

Rated Input Voltage: 560Vdc, 650Vdc, 800Vdc

Input Voltage Range: 200V~750Vdc, 500V~850Vdc, 500V~940Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc

Output Current: 142A, 107A, 62.5A

Output Power: 2kW, 3kW

Efficiency: ≥92%

Cooling Way: Air Cooling or Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 267*122*62mm

Weight: 2.5kg
