Dilong 6kW Open Frame DC-DC Converter Module for Pure or Hybrid Electric Vehicles

Name: Dilong 6kW Open Frame DC-DC Converter Module for Pure or Hybrid Electric Vehicles
Price: 1714 USD
Availability: InStock

Dilong 6kW Open Frame DC-DC Converter Module for Pure or Hybrid Electric Vehicles

Model

DE6KS16

Input Voltage Rated/Range

560V(200-750Vdc)

650V(500-850Vdc)

800V(480-940Vdc)

Output Voltage Rated/Range

14V(12.6-15.4Vdc)

28V(25.2-30.8Vdc)

48V(43.2-52.8Vdc)

80Vdc

100V(70-130Vdc)

200V(160-310Vdc)

400V(300-550Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

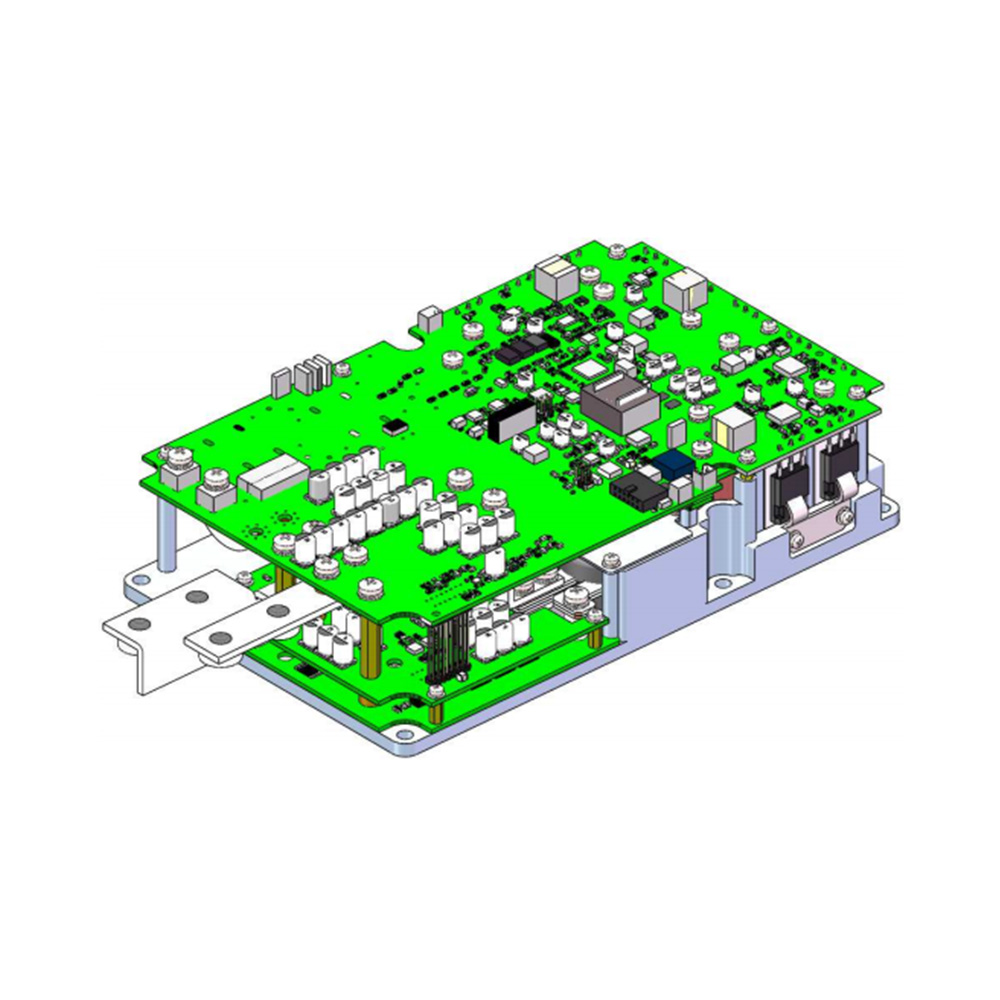

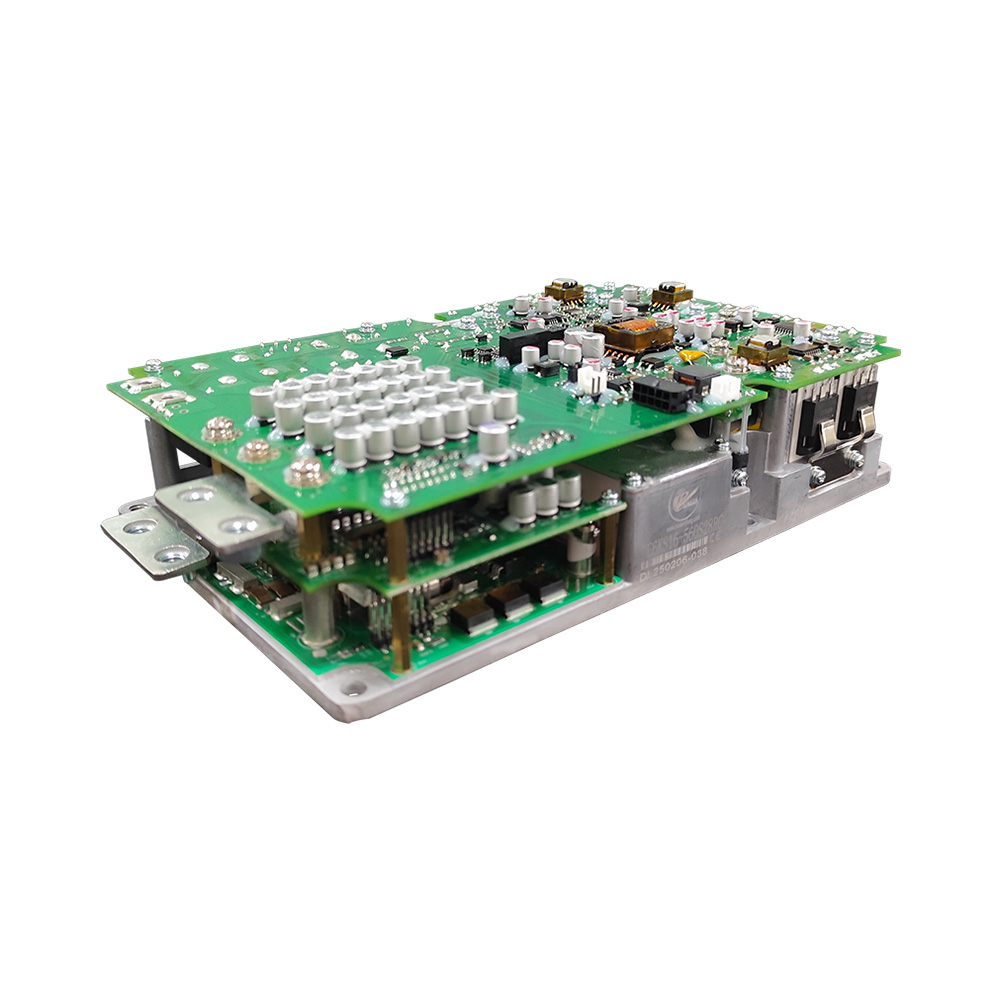

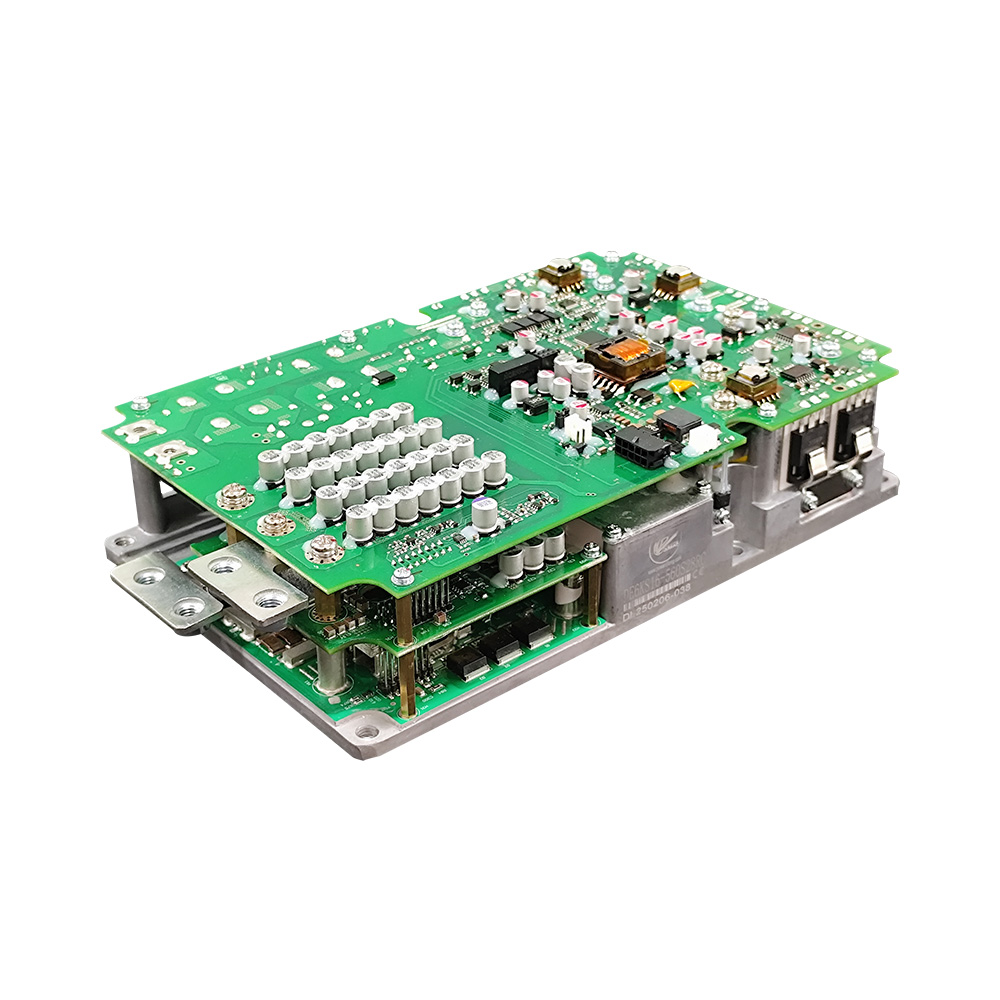

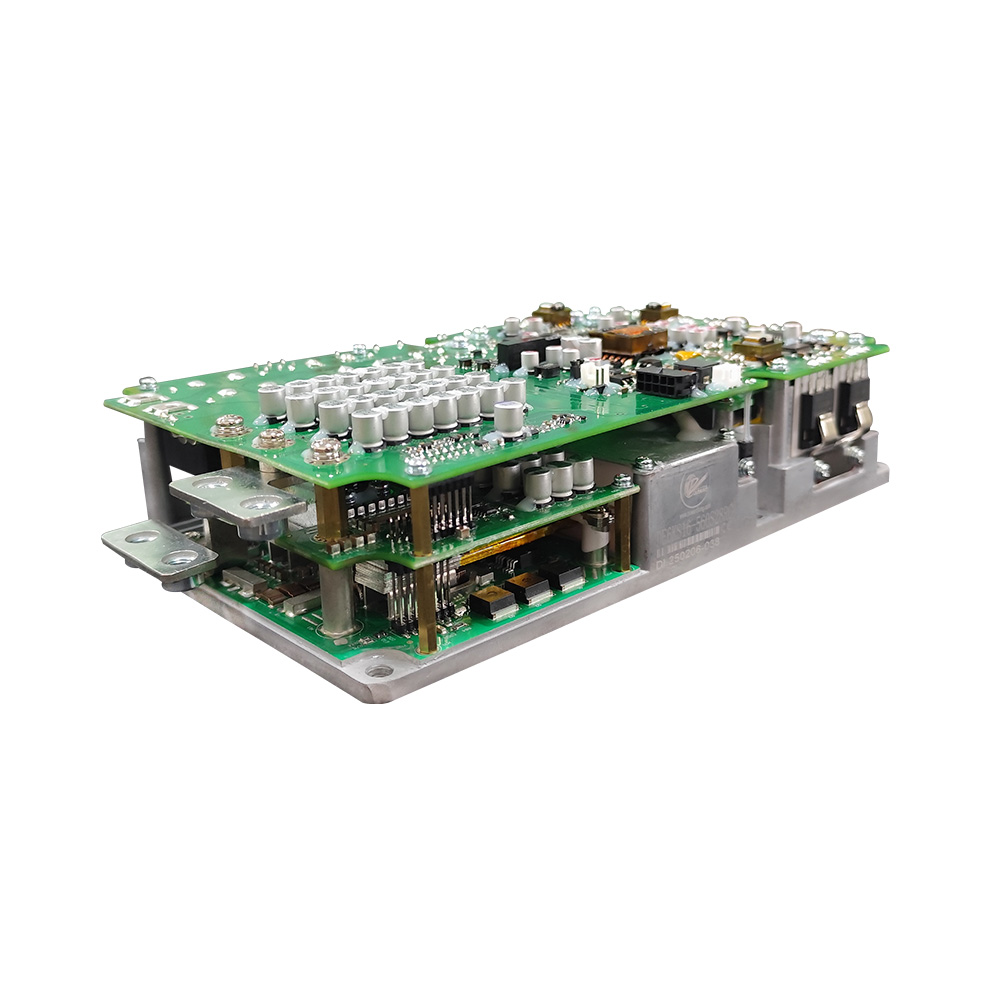

Dilong DE6KS16 open frame EV DC DC converter module with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.

With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer.

It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.

synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

Specification

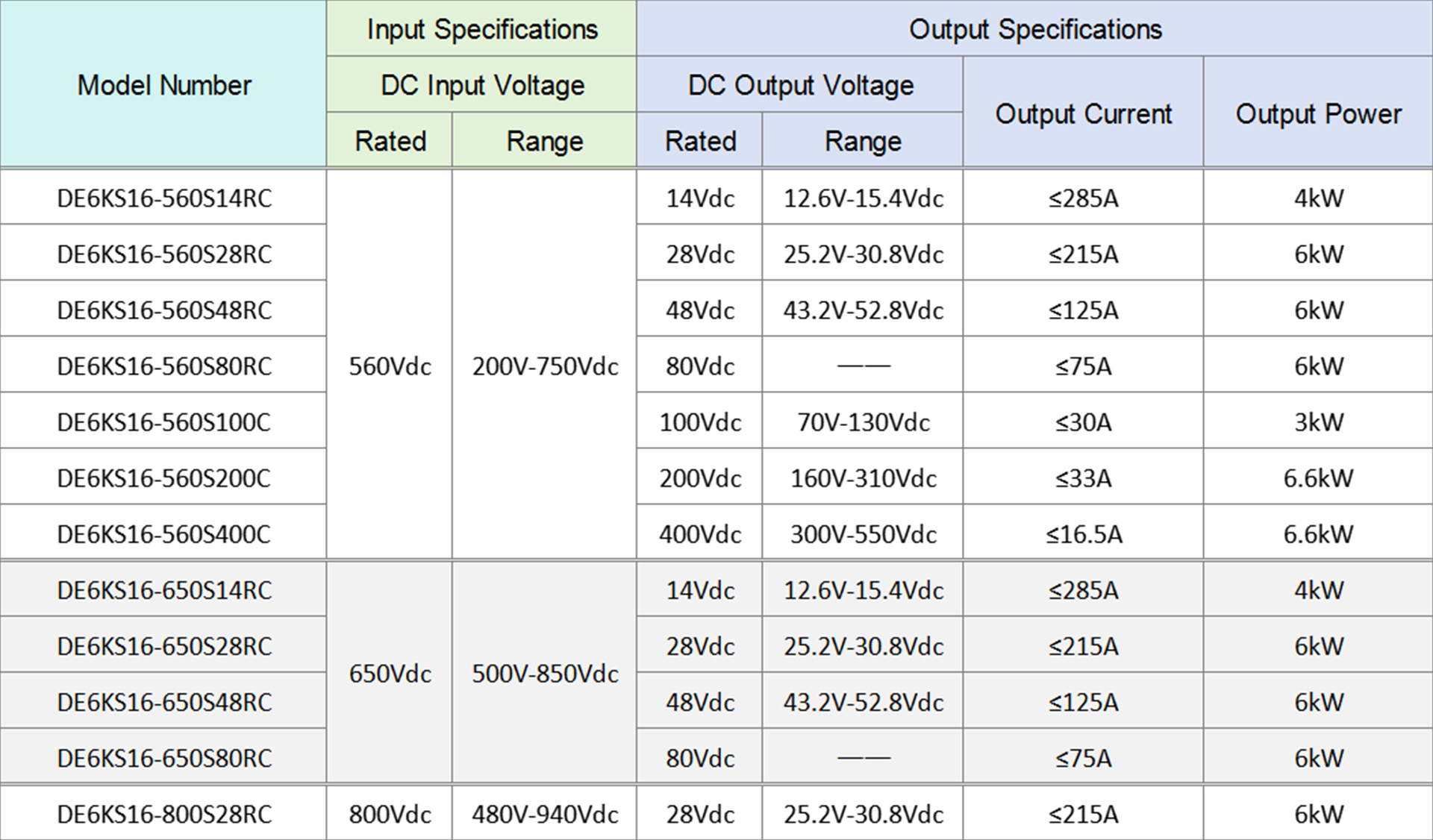

Please refer to the table below for product specifications.

• Product Model

DE6KS16-560S14RC, DE6KS16-560S28RC, DE6KS16-560S48RC, DE6KS16-560S80RC, DE6KS16-560S100C, DE6KS16-560S200C, DE6KS16-560S400C

DE6KS16-650S14RC, DE6KS16-650S28RC, DE6KS16-650S48RC, DE6KS16-650S80RC, DE6KS16-800S28RC

• Input Specifications

Input Voltage Range: 200V~750Vdc, 500V~850Vdc, 480V~940Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc, 80Vdc, 100Vdc, 200Vdc, 400Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc, 70V~130Vdc, 160V~310Vdc, 300V~550Vdc

Max Output Current: 285A, 215A, 125A, 75A, 30A, 33A, 16.5A

Rated/Peak Output Power: 3000W, 4000W, 6000W, 6600W

Efficiency: ≥94%

Cooling Way: Air Cooling or Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 262*166*68mm

Weight: 5kg
