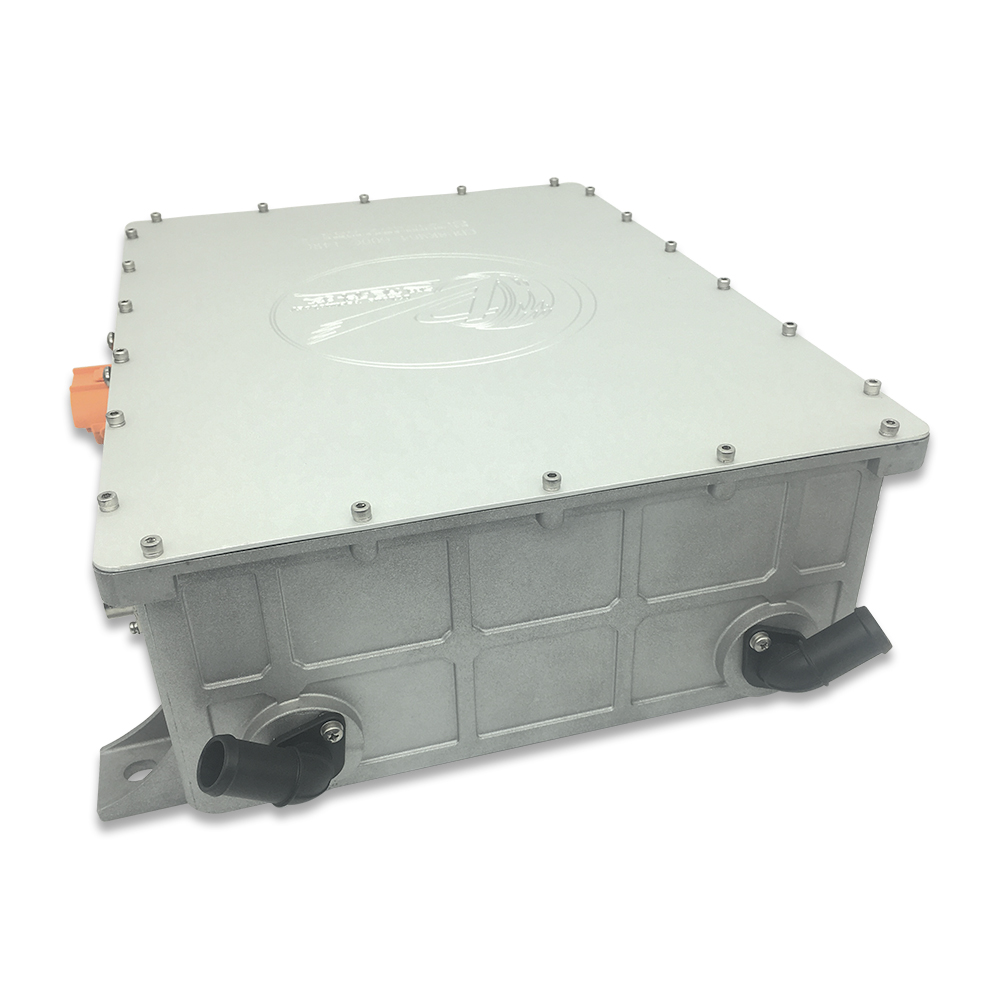

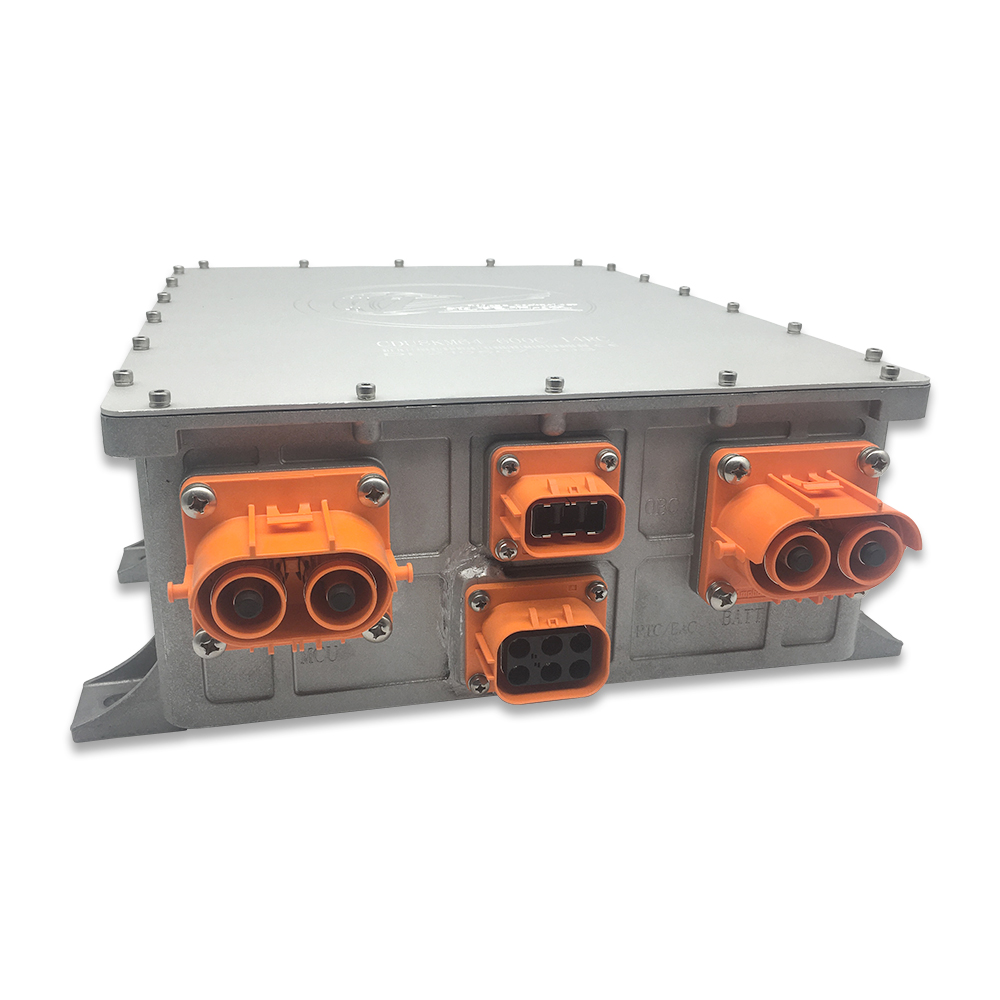

Dilong Integrated Charger 3 in 1 6.6kW OBC 1.5kW DCDC and PDU Combo Unit CDU for Electric Vehicle

Dilong Integrated Charger 3 in 1 6.6kW OBC 1.5kW DCDC and PDU Combo Unit CDU for Electric Vehicle

Model
CDU8KM64
OBC Input Voltage
AC 220V (85-264V)
OBC/DC-DC Output Voltage
DC 400V(300-550V)/14V
DC 600V(400-750V)/14V
DC 600V(400-750V)/28V
DC 650V(500-850V)/14V
DC 650V(500-850V)/28V
DC 360V(250-450V)/14V
Rated Output Power
6.6kW OBC+1.5kW DC-DC+PDU
Quantity
Only 1000 left
Volume Pricing
Quantity
Price
1+
$1.00 USD each
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

Description

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

1. CDU8KM64 is a liquid-cooled, specifically designed for pure electric vehicles, can freely combine OBC+DC/DC+PDU, and high-voltage distribution unit ‘3-in-1’, conversion switching power converter.

2. OBC charger adopts advanced resonance technology, high efficiency, high power, small size, reliable work, charging mode using constant power and constant voltage automatic state transition, effectively saving the charging time. Wide input and output voltage range with active power factor correction, zero pollution to the grid.

3. Using CAN2.0B communication protocol, with intelligent charging function, intelligent monitoring fault alarmprotection function, Built-in battery management system wake-up signal to power for BMS.

4. DC-DC high voltage input and low voltage output adopts advanced fully digital technology, high power density, small size, reliable working method, with constant current and constant pressure automatic state conversion.

5. Using CAN2.0B communication protocol, with intelligent charging function, with intelligent monitoring fault alarm and protection function.

6. This power supply is specially designed for high voltage battery charging and buck conversion of electric vehicles. Reducing the number of vehicle wiring harness connector and the trouble caused by split power supply installation.

7. The power supply adoptsliquid-cooled design, synchronizing with world-class automotive power supply manufacturers, the performance of the unit have reached and exceeded the international counterparts horizontal. Longer trouble-free operation time and reducing the natural defect risk caused by air cooling method.

8. Max Input current: 32A

9. Frequency: 45Hz~65Hz

10. Power factor: ≥0.99

11. Efficiency: ≥94%

12. Protection grade: IP67

13. Operation temperature: - 40℃~90℃

14. Storage temperature: - 45℃~95℃

15. Control: CAN

16. Cooling way: Liquid Cooling

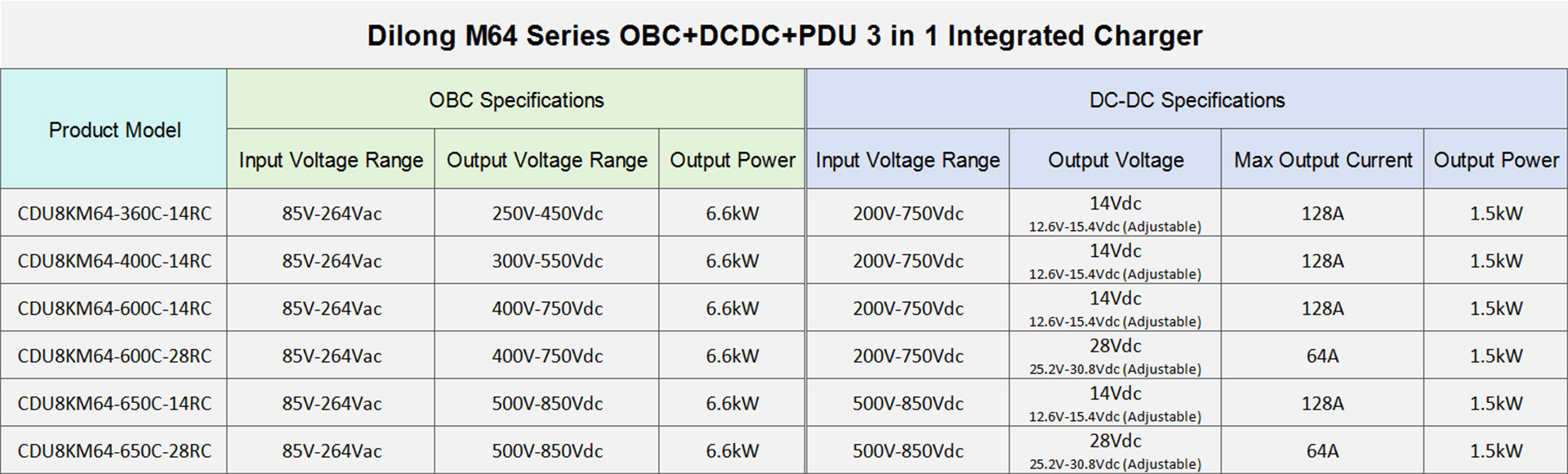

Model Type of Cooling AC Input Voltage(OBC) DC Output Voltage(OBC) Input Voltage Range(DC-DC) Output Voltage(DC-DC) Rated Output Power
CDU8KM64-360C-14C Liquid Cooling 220V (85-264V) 360V (250-450V) 200-750Vdc 14V (12.6-15.4Vdc) 6.6kW OBC+1.5kW DC-DC
CDU8KM64-400C-14C Liquid Cooling 220V (85-264V) 400V (300-550V) 200-750Vdc 14V (12.6-15.4Vdc) 6.6kW OBC+1.5kW DC-DC
CDU8KM64-600C-14C Liquid Cooling 220V (85-264V) 600V (400-750V) 200-750Vdc 14V (12.6-15.4Vdc) 6.6kW OBC+1.5kW DC-DC
CDU8KM64-600C-28C Liquid Cooling 220V (85-264V) 600V (400-750V) 200-750Vdc 28V (25.2-30.8Vdc) 6.6kW OBC+1.5kW DC-DC
CDU8KM64-650C-14C Liquid Cooling 220V (85-264V) 650V (500-850V) 500-850Vdc 14V (12.6-15.4Vdc) 6.6kW OBC+1.5kW DC-DC
CDU8KM64-650C-28C Liquid Cooling 220V (85-264V) 650V (500-850V) 500-850Vdc 28V (25.2-30.8Vdc) 6.6kW OBC+1.5kW DC-DC
