Product Description

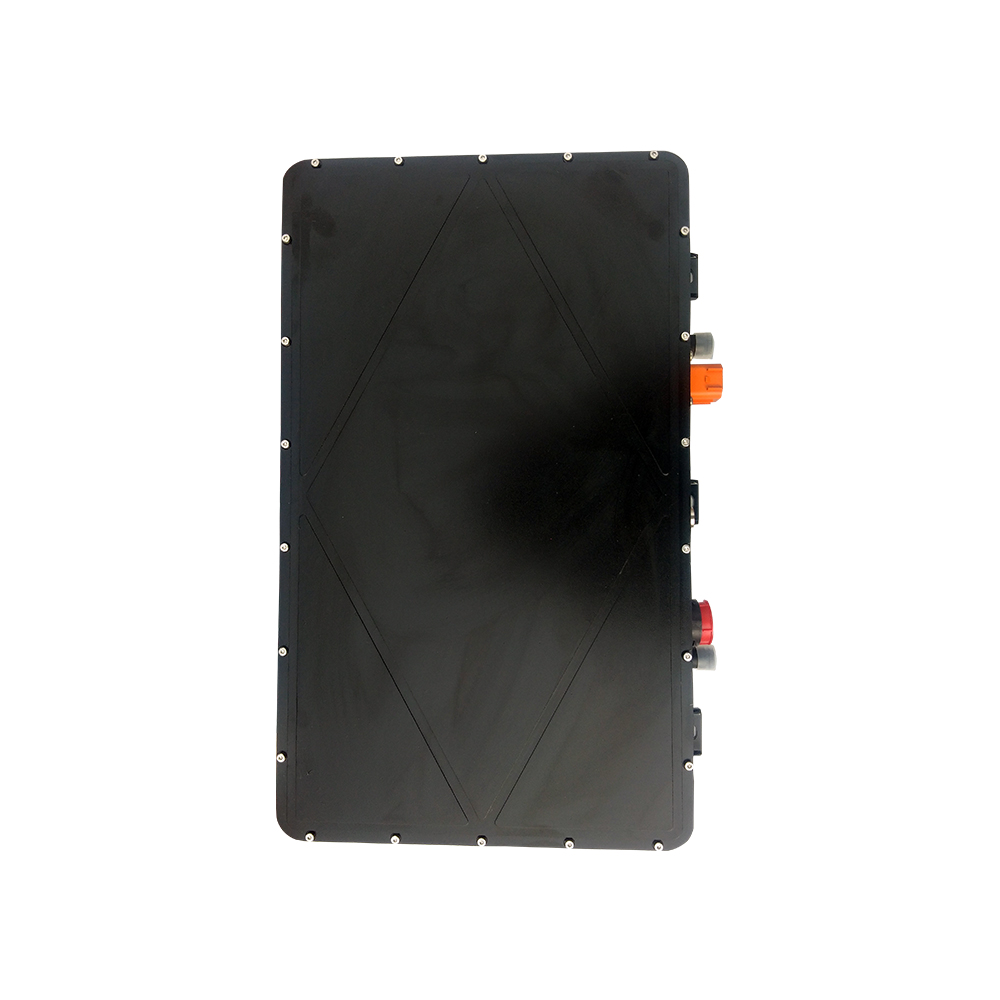

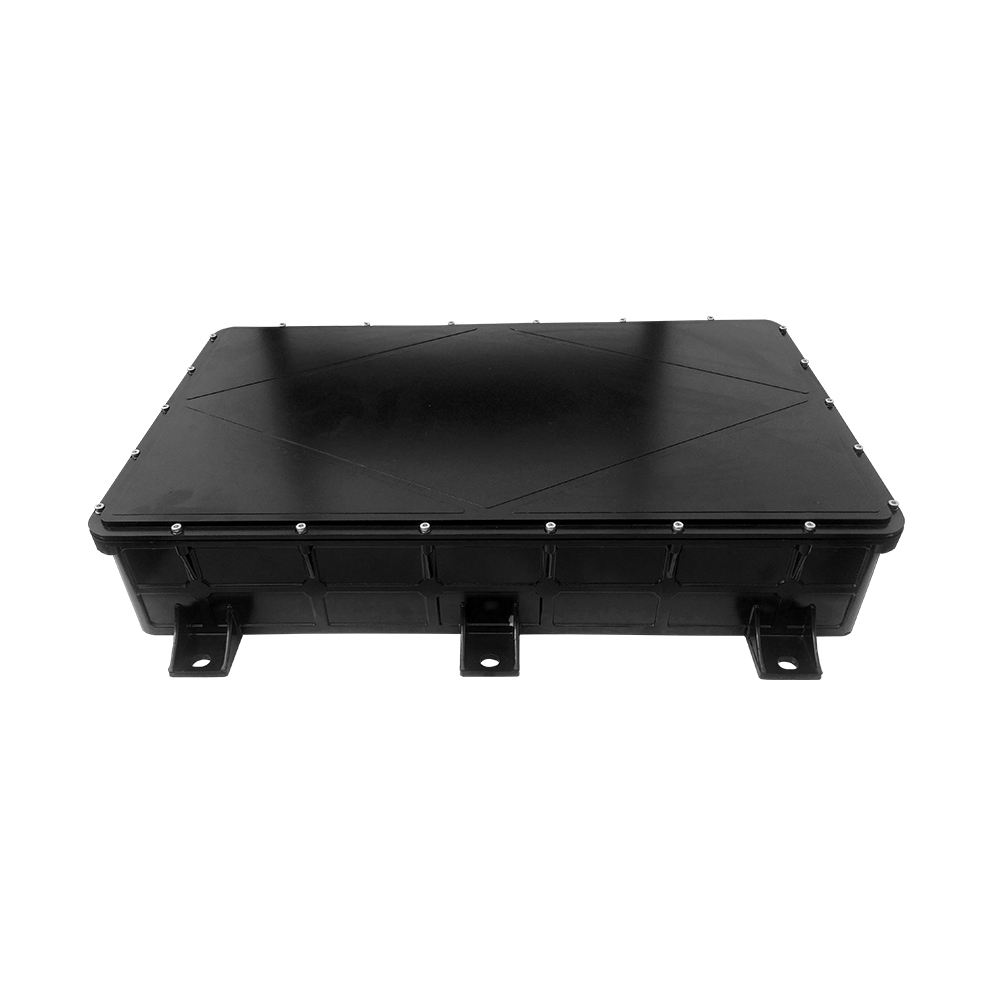

Dilong DA22KM24B OBC & DCDC 2 in 1 combo unit integrated charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.
The charging mode adopts constant power,constant voltage and constant current automatic state transition, which effectively saves charging time. With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol. With intelligent charging function, it has intelligent monitoring fault alarm protection function, programme function and fault inquiry function.
It also has built-in 12V independent auxiliary power supply for power supply of car battery management system.
This power supply is specially designed for charging high-voltage batteries of new energy vehicles. which is completely synchronized with the world-class automobile power supply manufacturers. The performance indicators have reached or exceeded the international peer level, and the fault-free running time is longer.
Specification

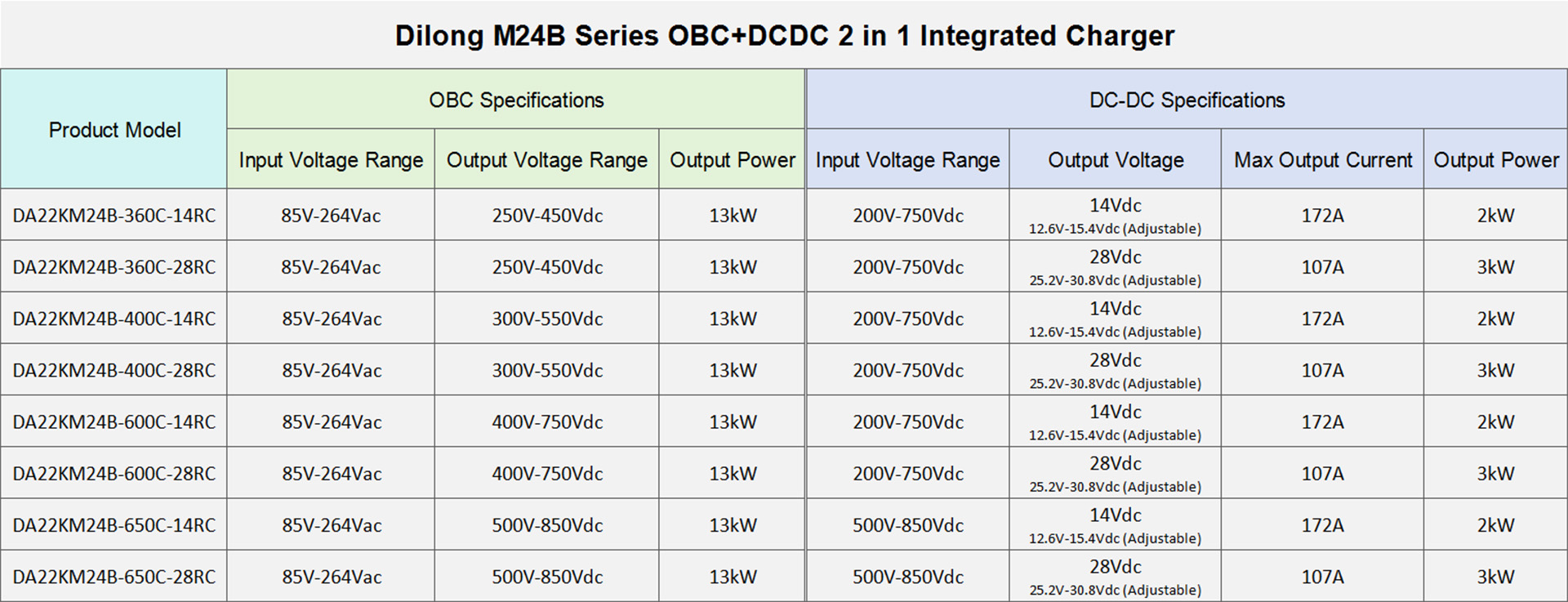

Please refer to the table below for product specifications.
• Product Model
DA22KM24B-360C-14RC, DA22KM24B-360C-28RC, DA22KM24B-400C-14RC, DA22KM24B-400C-28RC
DA22KM24B-600C-14RC, DA22KM24B-600C-28RC, DA22KM24B-650C-14RC, DA22KM24B-650C-14RC
• OBC Specifications
Rated Input Voltage: 220Vac
Input Voltage Range: 85V~264Vac
Max Input Current: 64A
Frequency Range: 45Hz~63Hz
Power Factor: ≥0.99
Rated Output Voltage: 360Vdc, 400Vdc, 600Vdc, 650Vdc
Output Voltage Range: 250V~450Vdc, 300V~550Vdc, 400V~750Vdc, 500V~850Vdc
Output Power: 13kW
• DC-DC Specifications
Input Voltage Range: 200V~750Vdc, 500V~850Vdc
Rated Output Voltage: 14Vdc, 28Vdc
Output Voltage Range: 12.6V~15.4Vdc; 25.2V~30.8Vdc
Output Power: 2kW, 3kW
Efficiency: ≥94%
Waterproof Grade: IP67
Cooling Way: Liquid Cooling
Control Way: CAN Bus
Operation temperature: - 40℃～90℃
Storage temperature: - 45℃～95℃
• Dimension and Weight
Dimension(L*W*H): 568*399*115mm
Weight: 32kg
