Dilong M24 Series 20kW OBC 3-phase Air cooling On-board Charger for Electric Vehicles

Dilong M24 Series 20kW OBC 3-phase Air cooling On-board Charger for Electric Vehicles

Model
DA20KM24
OBC Input Voltage
380Vac(147-457Vac)
OBC/DC-DC Output Voltage
360Vdc(250-450Vdc)
400Vdc(300-550Vdc)
600Vdc(400-750Vdc)
650Vdc(500-850Vdc)
Quantity
Only 5000 left
Volume Pricing
Quantity
Price
1+
$1.00 USD each
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Description

1.DA20KM24-380S360C is an OBC switching power converter. The charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.

2.The charging mode adopts constant power, constant voltage and constant current automatic state transition, which effectively saves charging time.

3.With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol.

4.With intelligent charging function, it has intelligent monitoring fault alarm protection function, programme function and fault inquiry function.

5.It also has built-in 12V independent auxiliary power supply for power supply of car battery management system.

6.It also has built-in 12V independent auxiliary power supply for power supply of car battery management system.

7.Rated Output Power: 20kW

8.AC Input Voltage: 380Vac(147-457Vac)

9.DC Output Voltage: 360Vdc(250-450Vdc); 400Vdc(300-550Vdc); 600Vdc(400-750Vdc); 650Vdc(500-850Vdc)

10.Efficiency at Full Loading: 94%

11.Protection Grade: IP66 Waterproof

12.Operation Temperature: -40℃~90℃

13.Storage Temperature: -45℃~95℃

14.Control: CAN or Enable

15.Cooling Way: Air Cooling

Model Type of Cooling AC Input Voltage Max Input Current DC Output Voltage Output Voltage Range Rated Output Power
DA20KM24-380S360C Air Cooling 380V (147-457V) 32A 360V 250-450Vdc 20 kW
DA20KM24-380S400C Air Cooling 380V (147-457V) 32A 400V 300-550Vdc 20 kW
DA20KM24-380S600C Air Cooling 380V (147-457V) 32A 600V 400-750Vdc 20 kW
DA20KM24-380S650C Air Cooling 380V (147-457V) 32A 650V 500-850Vdc 20 kW

Development History
Leading supplier of professional power supply
Products quality and service of first class

Our Honor
IATF16949, ISO14001, RoHs, CE, ISO9001
Utility model patent certificate

Dilong Factory
We are manufacturers. Welcome to visit our factory.

Factory Exterior
Factory Exterior
SMT Workshop
SMT Workshop
Aging Workshop
Aging Workshop
Quality Inspection
Quality Inspection
Assembly Plant
Assembly Plant
Product Display
Product Display

Ten Production Flow of Dilong
Dilong regards product quality as company life and strictly control all process links during production. From producing raw materials to finished products, adopting advanced and scientific production process, efficient production process, advanced detection and monitoring equipment, and continuous innovation, then we can ensure the high-efficiency and reliable quality of products.

Components testing and selection
Components testing and selection
Components SMT automatically welding
Components SMT automatically welding
AOI automatically welding testing
AOI automatically welding testing
Automatically software programmed
Automatically software programmed
Automatically assemble and sealing
Automatically assemble and sealing
Automatically products parameter proofreading
Automatically products parameter proofreading
8 hours 100% automatically aging test
8 hours 100% automatically aging test
100%
automatically testing of 28 items
100%
automatically testing of 28 items
100%
human testing of 60 items
100%
human testing of 60 items

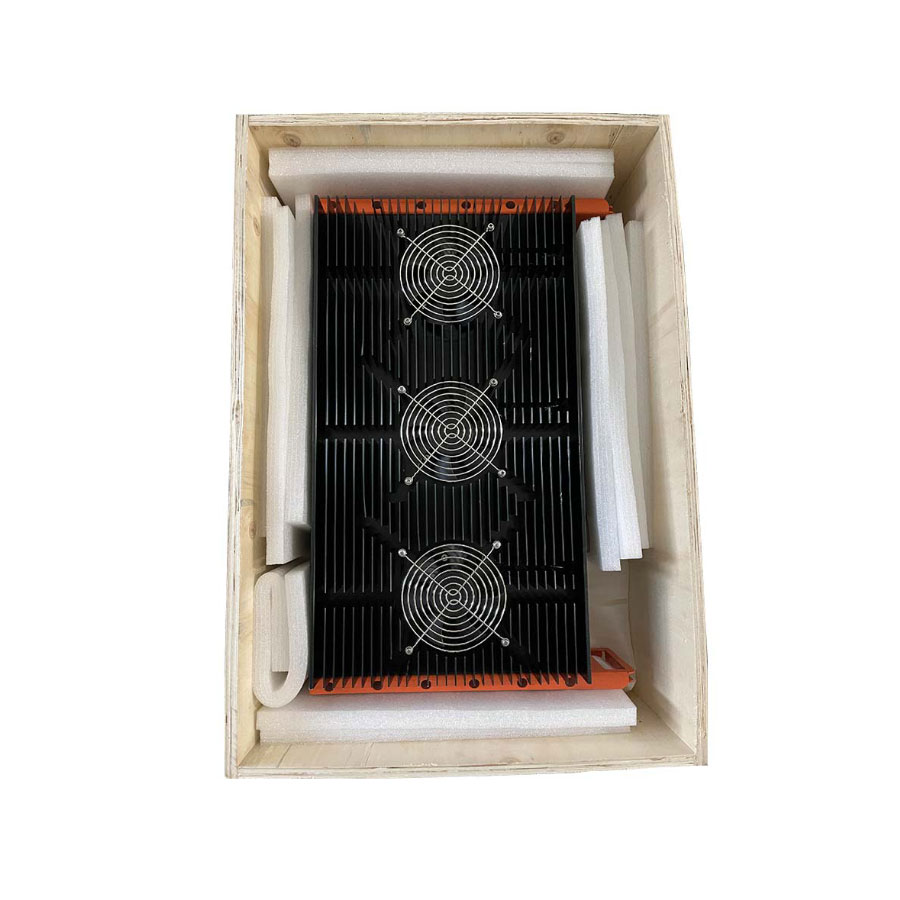

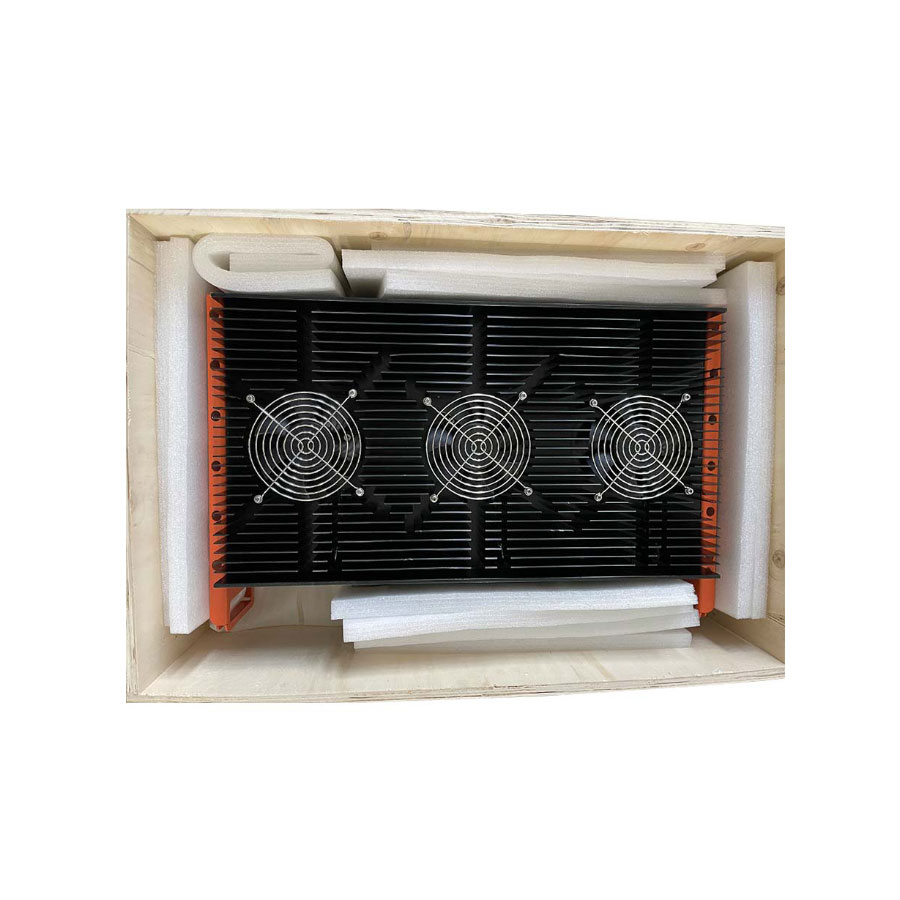

Plywood
