Product Description

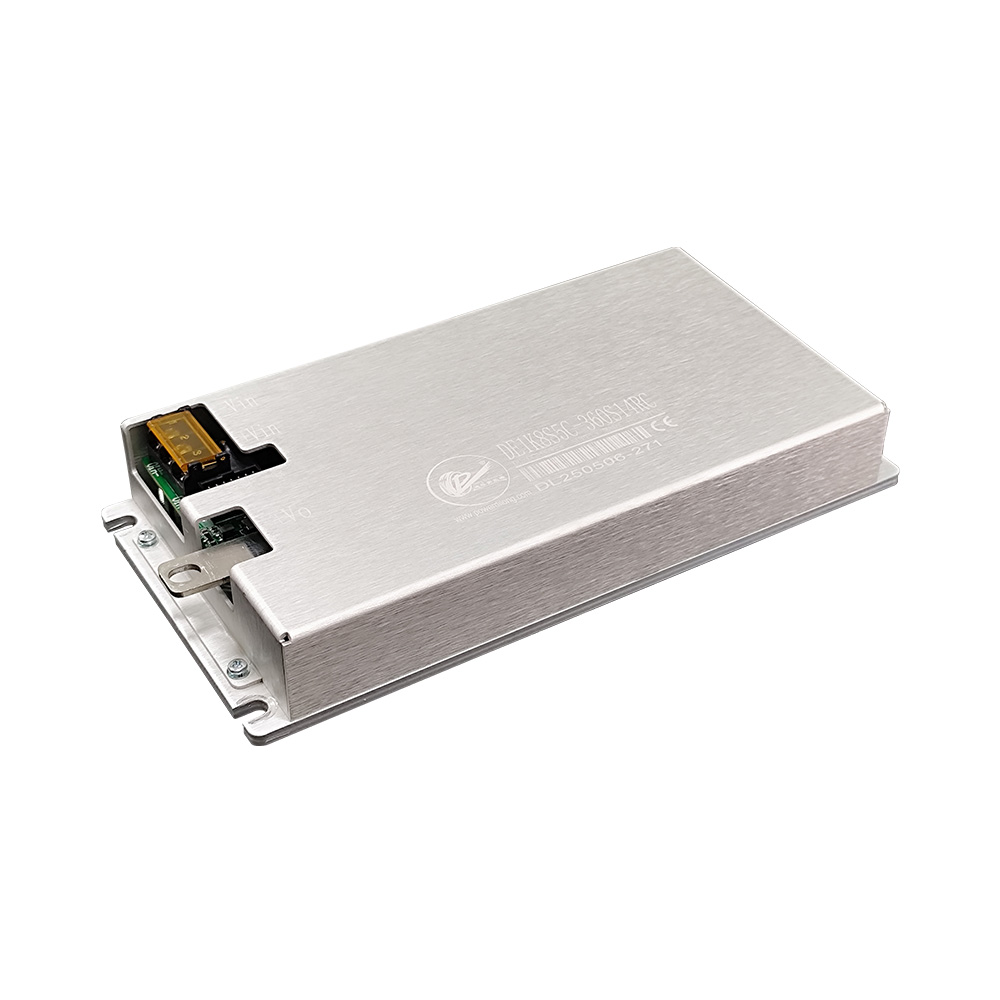

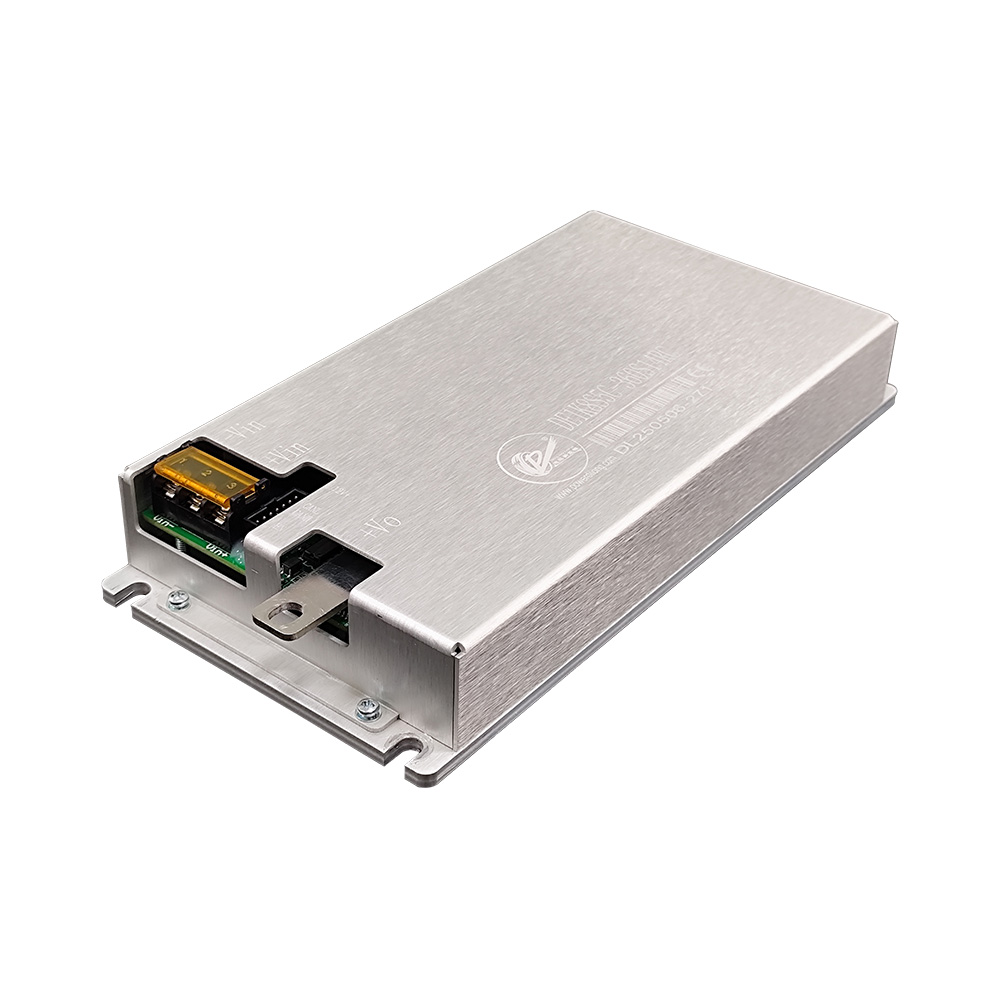

Dilong DE1K5S5C DC to DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.
It With functions of input over/under voltage protection, output over current protection, over temperature protection,etc. Achieving constant voltage and constant current automatic transfer.
It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.
This DC-DC converter car power supply synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant currentfield.

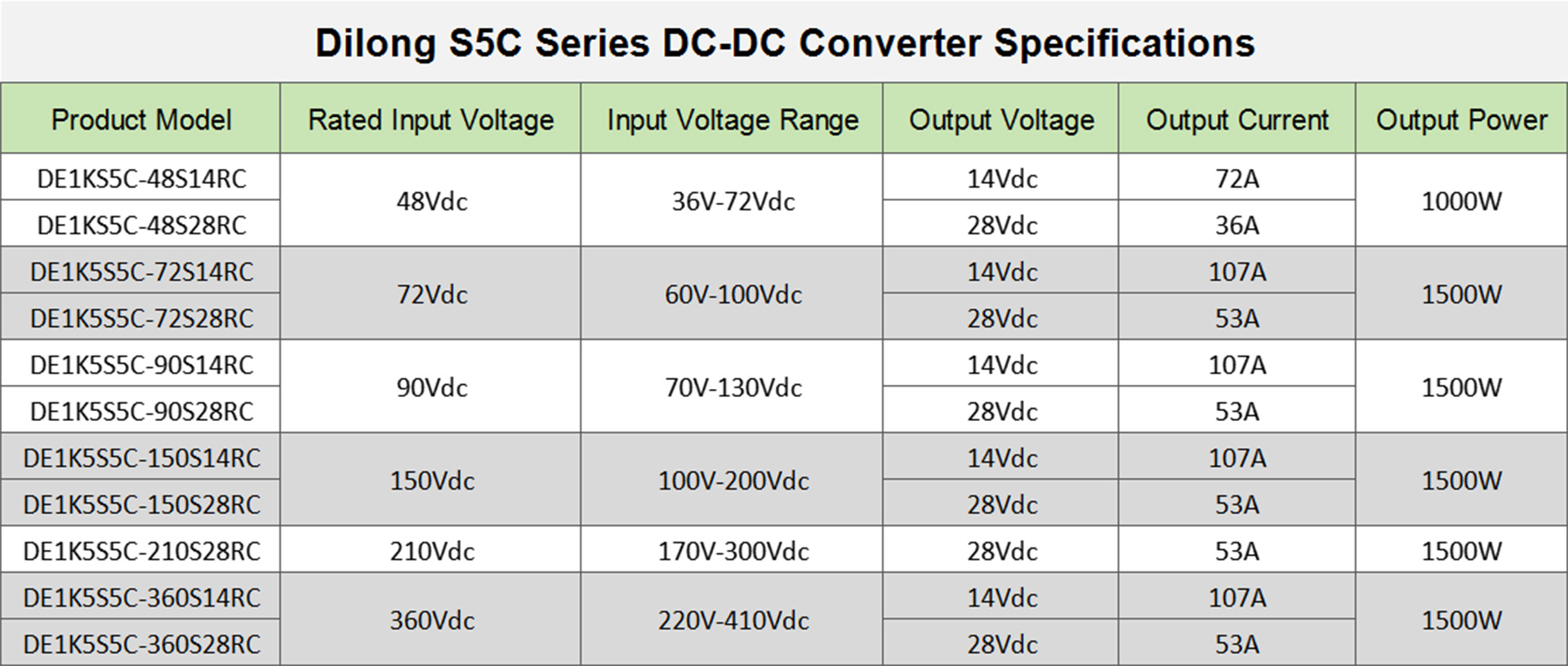

Specification
• Product Model
DE1K5S5C-48S14RC, DE1K5S5C-48S28RC, DE1K5S5C-72S14RC, DE1K5S5C-72S28RC, DE1K5S5C-90S14RC, DE1K5S5C-90S28RC, DE1K5S5C-150S14RC, DE1K5S5C-150S28RC, DE1K5S5C-210S28RC, DE1K5S5C-360S14RC, DE1K5S5C-360S28RC
• Input Specifications
Rated Input Voltage: 48Vdc, 72Vdc, 90Vdc, 150Vdc, 210Vdc, 360Vdc
Input Voltage Range: 36V~72Vdc, 60V~100Vdc, 70V~130Vdc, 100V~200Vdc, 170V~300Vdc, 220V~410Vdc
• Output Specifications
Output Voltage: 14Vdc, 28Vdc
Output Current: 72A, 36A, 107A, 53A
Output Power: 1000W, 1500W
Efficiency: ≥90%
Control Way: CAN or Enable
Operation Temperature: -30℃～60℃
Storage Temperature: -40℃～105℃
• Dimension and Weight
Dimension(L*W*H): 247*122*38mm
Weight: 1.8kg
