- The dilong M23A series OBC+DCDC 2 in 1 integrated charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.
- The charging mode adopts constant power, constant voltage and constant current automatic state transition, which effectively saves charging time.
- With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol.
- With intelligent charging function, it has intelligent monitoring fault alarm protection function, program me function and fault inquiry function.
- It also has built-in 12V independent auxiliary power supply for power supply of car battery management system.
- This power supply is specially designed for charging high-voltage batteries of new energy vehicles. which is completely synchronized with the world-class automobile power supply manufacturers. The performance indicators have reached or exceeded the international peer level, and the fault-free running time is longer.
- Efficiency: ≥94%
- Waterproof Grade: IP67
- Operation Temperature: - 40℃～90℃
- Storage Temperature: - 45℃～95℃
- Control: CAN
- Cooling Way: Liquid Cooling

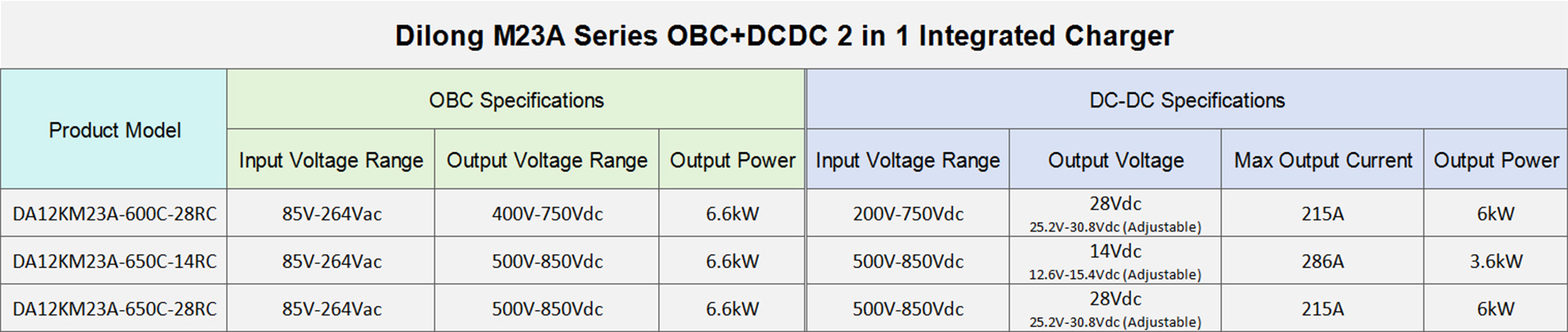

OBC Specifications
- Rated Input Voltage: 220Vac
- Input Voltage Range: 85-264Vac
- Frequency range: 45Hz-63Hz
- Max Input Current: 32A
- Power Factor: ≥0.99
- Rated Output Voltage: 600Vdc; 650Vdc
- Output Voltage Range: 400-750Vdc; 500-850Vdc
- Output Power: 6.6kW
DC-DC Specifications
- Input Voltage Range: 200-750Vdc; 500-850Vdc
- Rated Output Voltage: 14Vdc; 28Vdc
- Output Voltage Range: 12.6-15.4Vdc; 25.2-30.8Vdc
- Output Power: 3.6kW; 6kW
