Dilong S23 Series 12kW Air Cooled Step Down 14V 28V 48V EV DCDC Converter Charger

Name: Dilong S23 Series 12kW Air Cooled Step Down 14V 28V 48V EV DCDC Converter Charger
Price: 4571 USD
Availability: InStock

Dilong S23 Series 12kW Air Cooled Step Down 14V 28V 48V EV DCDC Converter Charger

Model

DE12KS23

Input Voltage Rated(Range)

560V(200-750Vdc)

650V(500-850Vdc)

800V(480-940Vdc)

Output Voltage Rated(Range)

14V(12.6-15.4Vdc)

28V(25.2-30.8Vdc)

48V(43.2-52.8Vdc)

360V(250-450Vdc)

400V(300-550Vdc)

600V(400-750Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

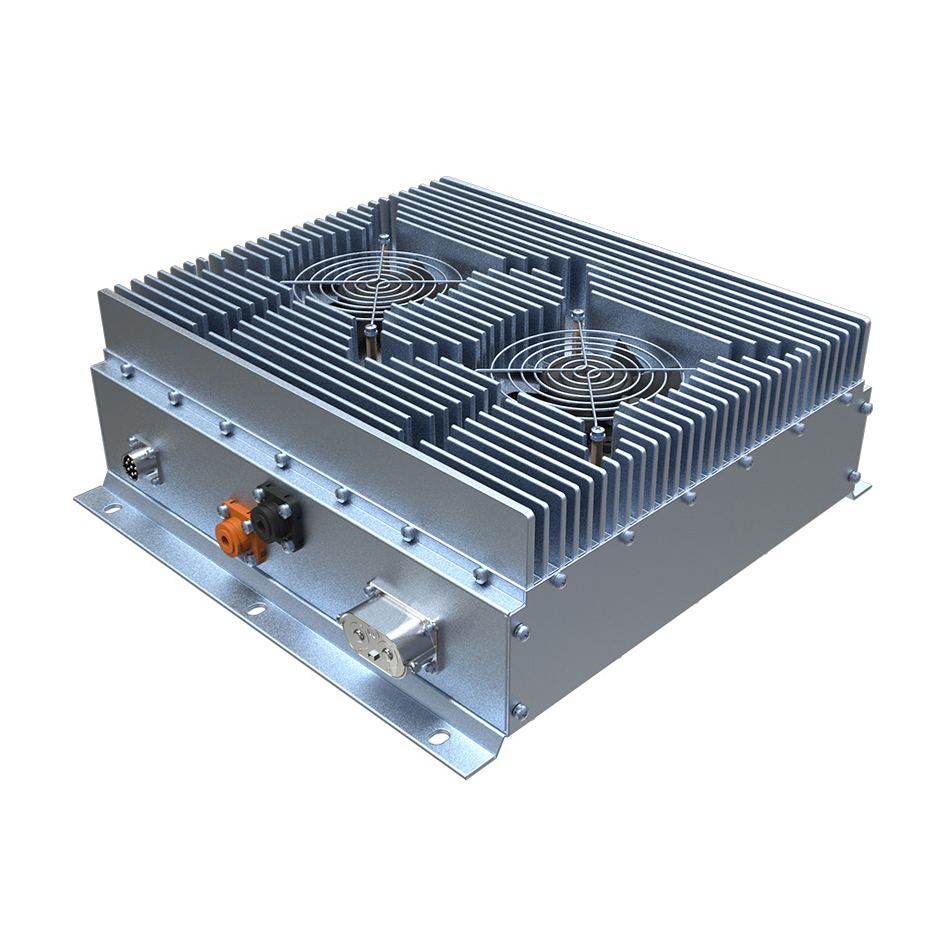

Dilong DE12KS23 12kW high power EV DC DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.

With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer. It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.

Synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

Specification

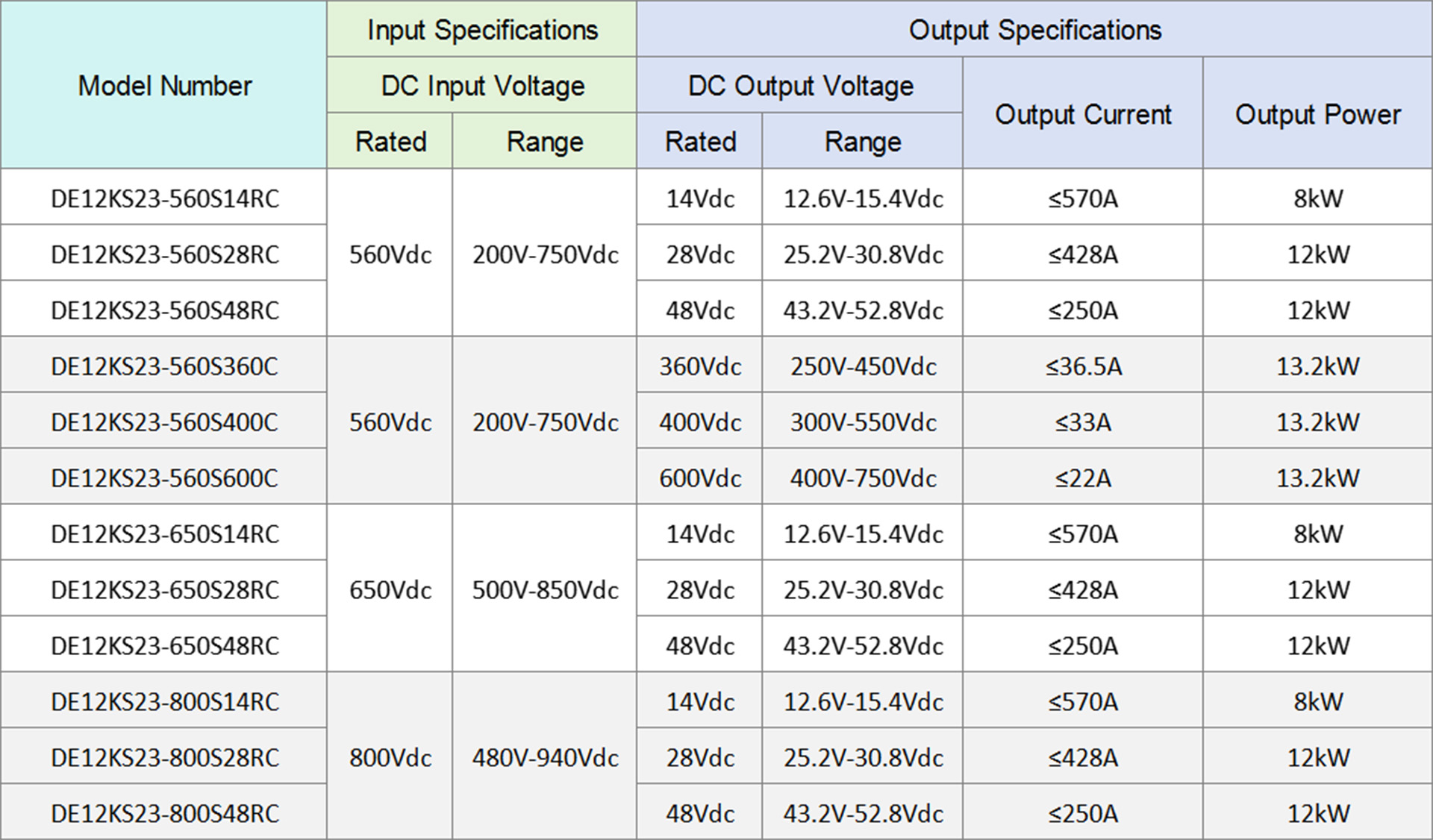

Please refer to the table below for product specifications.

• Product Model

DE12KS23-560S14RC, DE12KS23-560S28RC, DE12KS23-560S48RC, DE12KS23-560S360C, DE12KS23-560S400C, DE12KS23-560S600C

DE12KS23-650S14RC, DE12KS23-650S28RC, DE12KS23-650S48RC

DE12KS23-800S14RC, DE12KS23-800S28RC, DE12KS23-800S48RC

• Input Specifications

Input Voltage Range: 200V~750Vdc, 500V~850Vdc, 480V~940Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc, 360Vdc, 400Vdc, 600Vdc

Output Voltage Range: 12.6V~15.4Vdc, 25.2V~30.8Vdc, 43.2V~52.8Vdc, 250V~450Vdc, 300V~550Vdc, 400V~750Vdc

Rated/Peak Output Power: 8kW, 12kW

Efficiency: ≥94%

Waterproof Grade: IP66

Cooling Way: Air Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 380*364*139mm

Weight: 16kg
