Dilong S24 Series 20kW Air Cooled On-Board DC-DC Converter Charger for EV-Dilong Charger
Dilong S24 Series 20kW Air Cooled On-Board DC-DC Converter Charger for EV-Dilong Charger

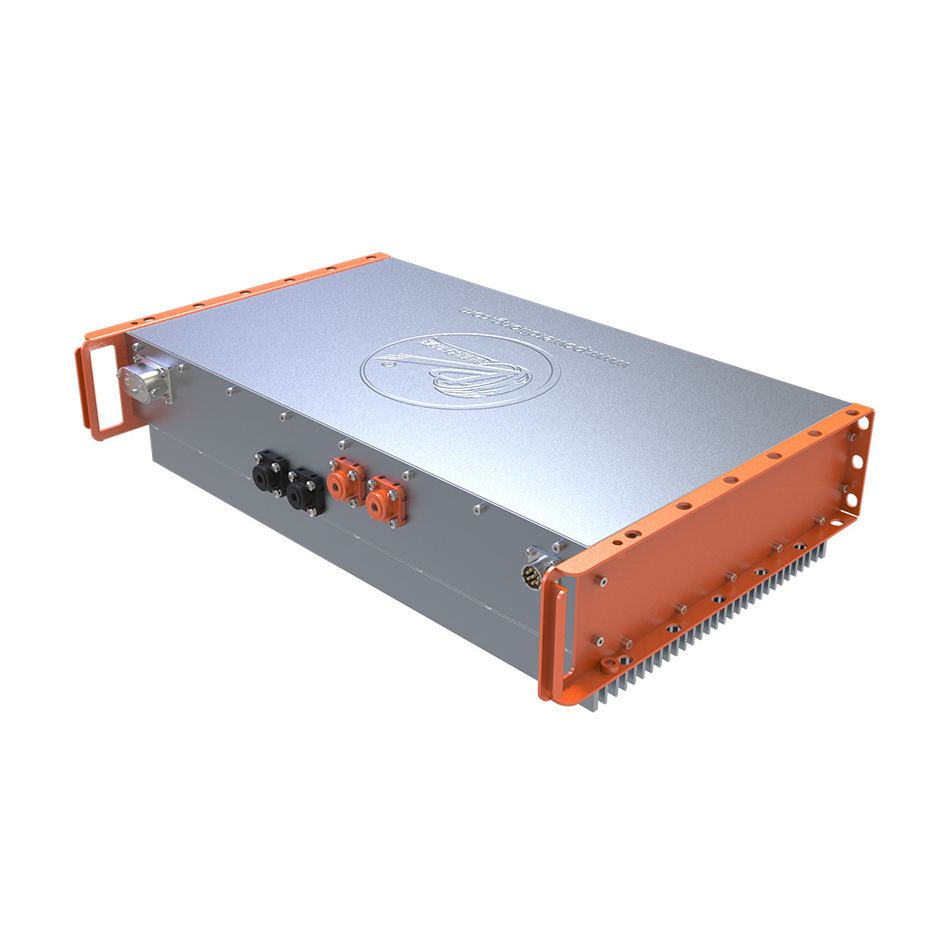

Dilong S24 Series 20kW Air Cooled On-Board DC-DC Converter Charger for EV

Dilong S24 Series 20kW Air Cooled On-Board DC-DC Converter Charger for EV

Model
DE20KS24
Input Voltage
560Vdc (200-750Vdc)
Output Voltage/Power
14Vdc(12-15.6Vdc)/10.8kW
28Vdc(25.2-30.8Vdc)/16.8kW
48Vdc(43.2-52.8Vdc)/16.8kW
360Vdc(250-450Vdc)/18kW
400Vdc(300-550Vdc)/18kW
600Vdc(400-750Vdc)/18kW
Quantity
Only 1000 left
Volume Pricing
Quantity
Price
1+
$1.00 USD each
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

Description

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

DE20KS24 is a DC/DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology. With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer. It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles. synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

  • Rated Input Voltage: 560Vdc
  • Input Voltage Range: 200-750Vdc
  • Output Voltage: 14Vdc (12-15.6Vdc); 28Vdc (25.2-30.8Vdc); 48Vdc (43.2-52.8Vdc); 360Vdc (250-450Vdc); 400Vdc (300-550Vdc); 600Vdc (400-750Vdc)
  • Rated Power: 10.8kW; 16.8kW; 18kW
  • Peak Power: 12kW; 18kW; 19.8kW
  • Efficiency: 94%
  • Operation Temperature: -30℃~60℃
  • Storage Temperature: -40℃~105℃
  • Protection Grade: IP66 Waterproof
  • Control: CAN
  • Cooling Way: Air Cooling
Model Rated Input Voltage Input Voltage Range Rated Output Voltage Output Voltage Range Rated Power Peak Power
DE20KS24-560S14C 560Vdc 200-750Vdc 14Vdc 12-15.6Vdc 10.8 kW 12 kW
DE20KS24-560S28C 560Vdc 200-750Vdc 28Vdc 25.2-30.8Vdc 16.8 kW 18 kW
DE20KS24-560S48C 560Vdc 200-750Vdc 48Vdc 43.2-52.8Vdc 16.8 kW 18 kW
DE20KS24-560S360C 560Vdc 200-750Vdc 360Vdc 250-450Vdc 18 kW 19.8 kW
DE20KS24-560S400C 560Vdc 200-750Vdc 400Vdc 300-550Vdc 18 kW 19.8 kW
DE20KS24-560S600C 560Vdc 200-750Vdc 600Vdc 400-750Vdc 18 kW 19.8 kW
