Dilong S44A Series 40kW Liquid Cooled DC to DC Converter for Energy Storage-Dilong Charger

Home / Dilong S44A Series 40kW Liquid Cooled DC to DC Converter for Energy Storage

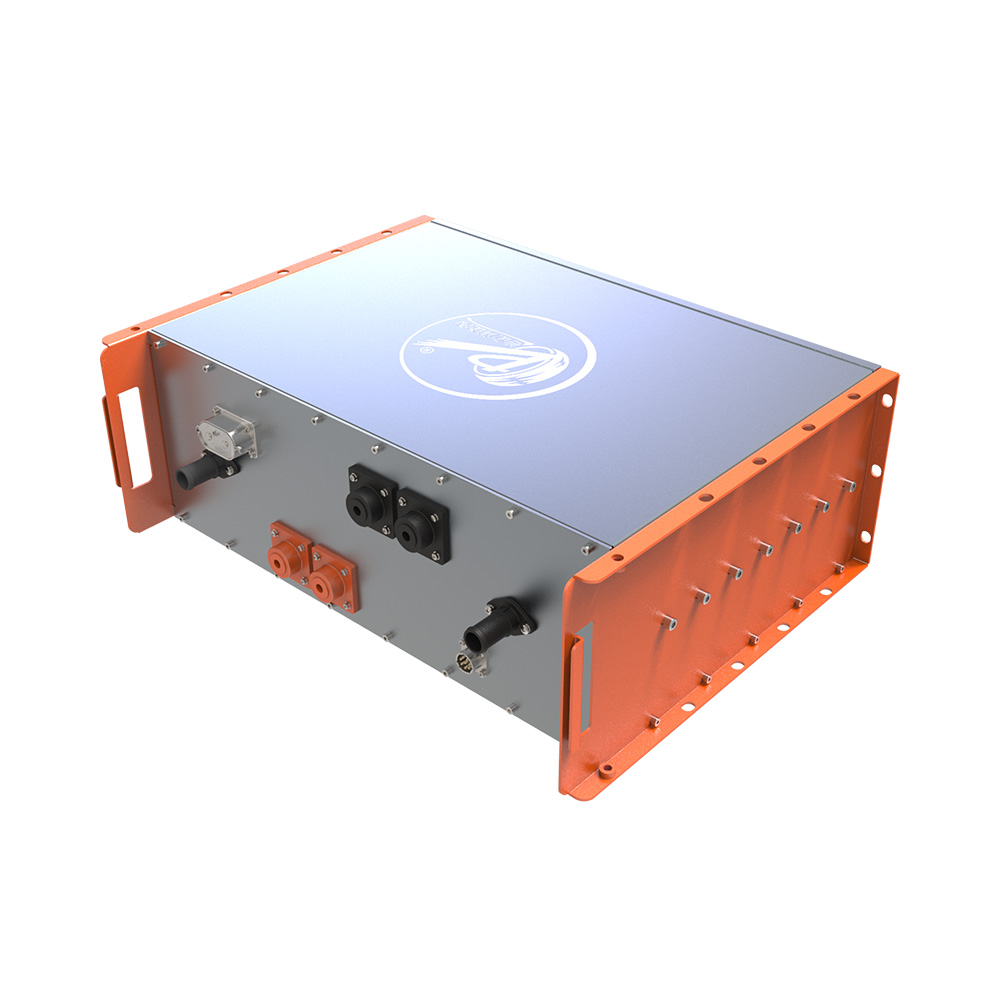

Dilong S44A Series 40kW Liquid Cooled DC to DC Converter for Energy Storage

Name: Dilong S44A Series 40kW Liquid Cooled DC to DC Converter for Energy Storage
Price: 11428 USD
Availability: InStock

Dilong S44A Series 40kW Liquid Cooled DC to DC Converter for Energy Storage

Model

DE40KS44A

Input Voltage Rated/Range

560V(200-750Vdc)

Output Voltage Rated/Range

200V(180-220Vdc)

360V(250-450Vdc)

400V(300-550Vdc)

600V(400-750Vdc)

800V(570-940Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

Dilong DE40KS44A high power DC DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.

With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer. It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.

Synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

Specification

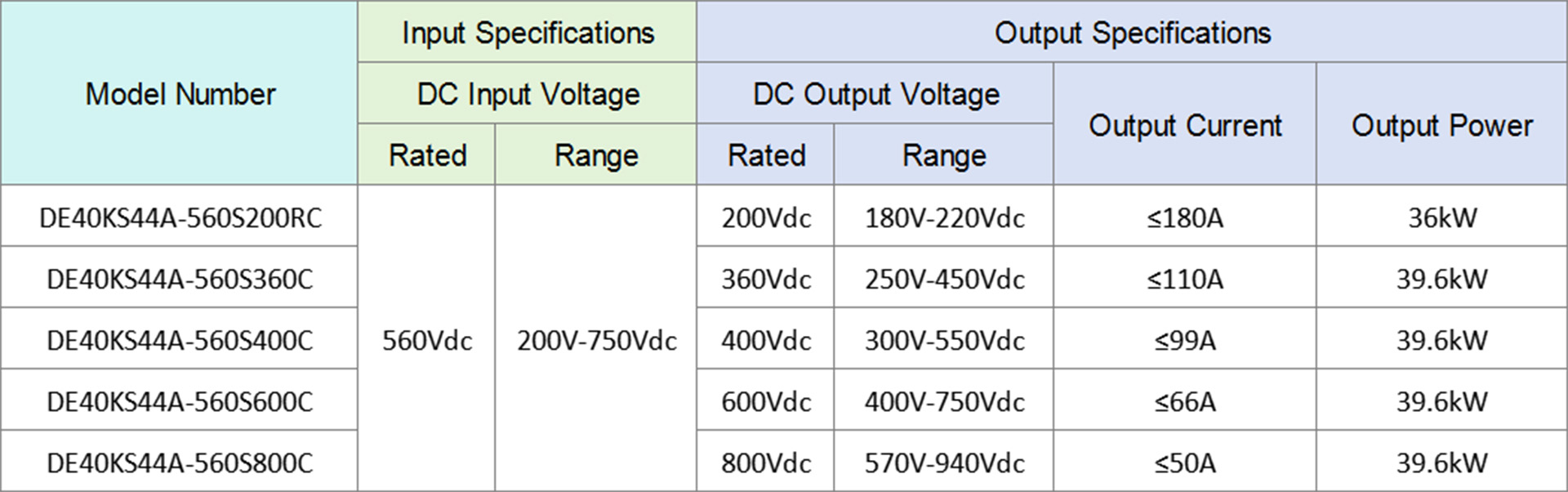

Please refer to the table below for product specifications.

• Product Model

DE40KS44A-560S200RC, DE40KS44A-560S360C, DE40KS44A-560S400C, DE40KS44A-560S600C, DE40KS44A-560S800C

• Input Specifications

Rated Input Voltage: 560Vdc

Input Voltage Range: 200V~750Vdc

• Output Specifications

Rated Output Voltage: 200Vdc, 360Vdc, 400Vdc, 600Vdc, 800Vdc

Output Voltage Range: 180V~220Vdc, 250V~450Vdc, 300V~550Vdc, 400V~750Vdc, 570V~940Vdc

Output Power: 36kW, 39.6kW

Efficiency: ≥94%

Waterproof Grade: IP66

Cooling Way: Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 562*374*198mm

Weight: 45kg

☞ If you have any questions about this product, please contact us at dilong@dilongkeji.com, Best wishes.
