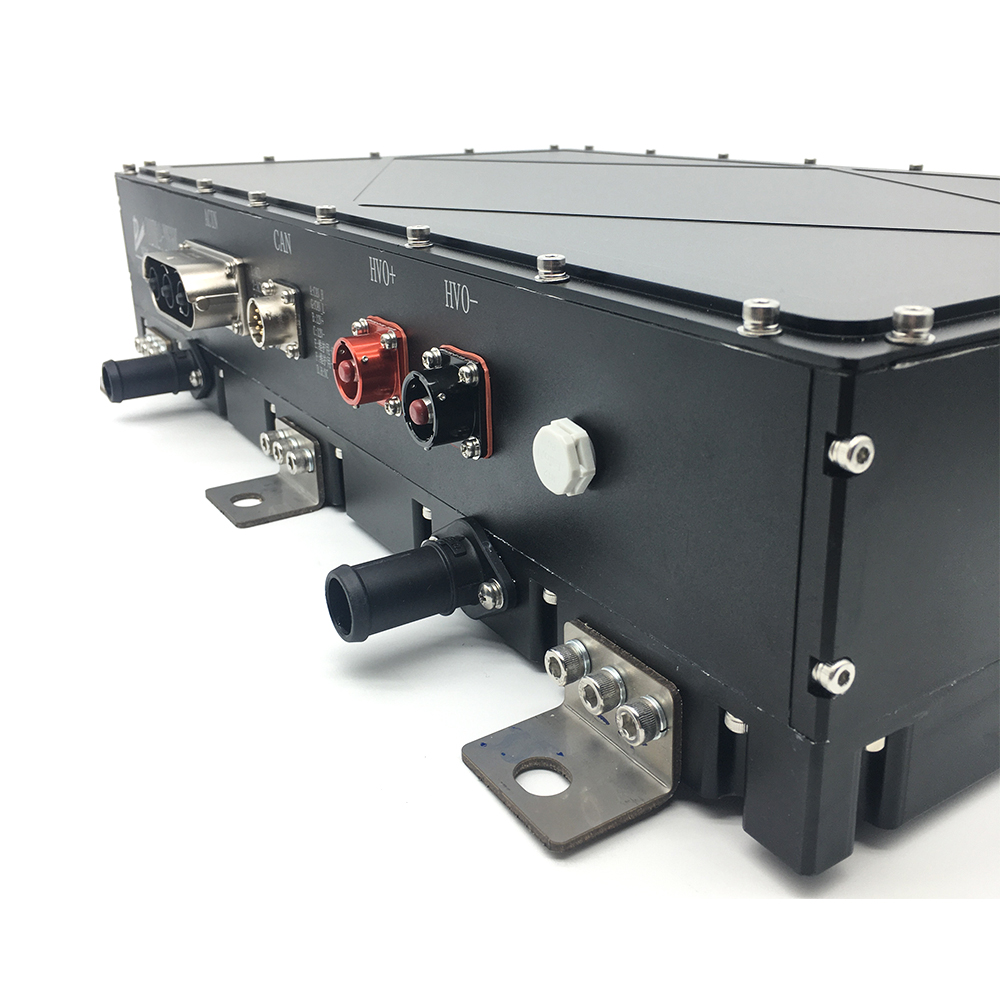

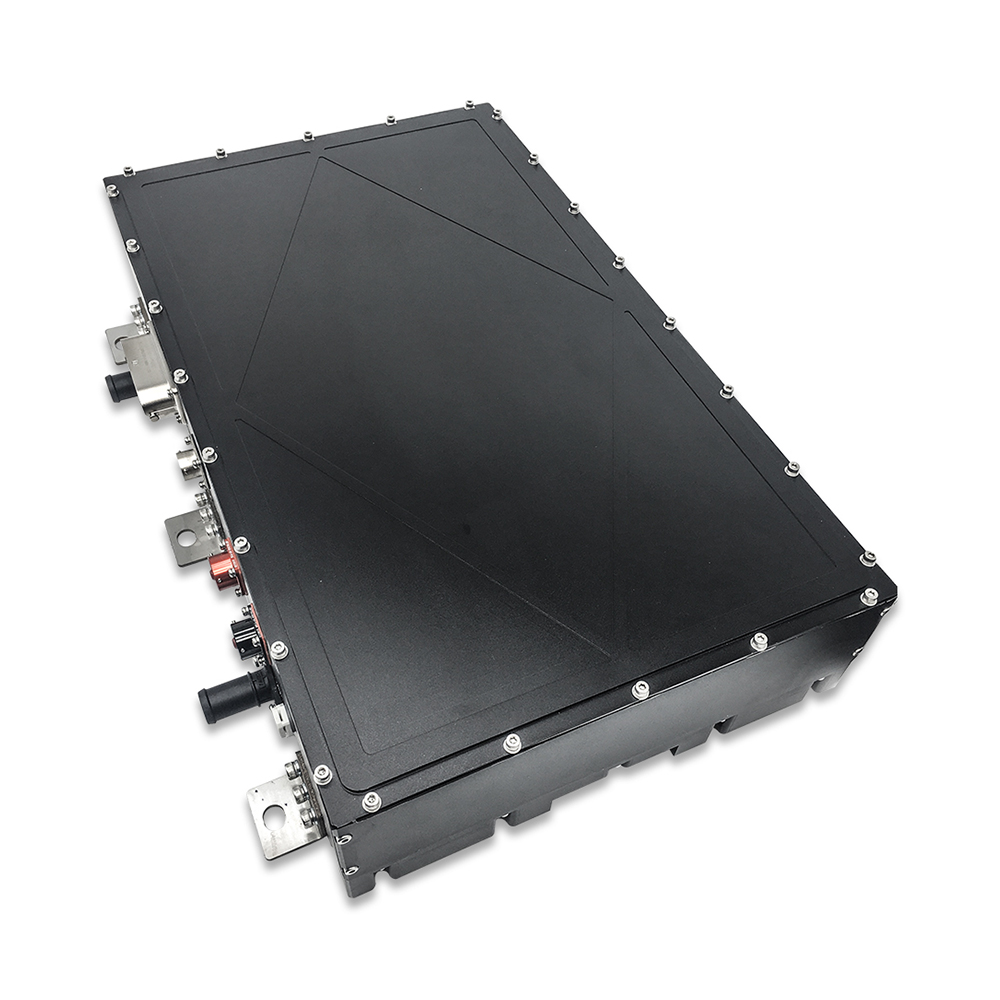

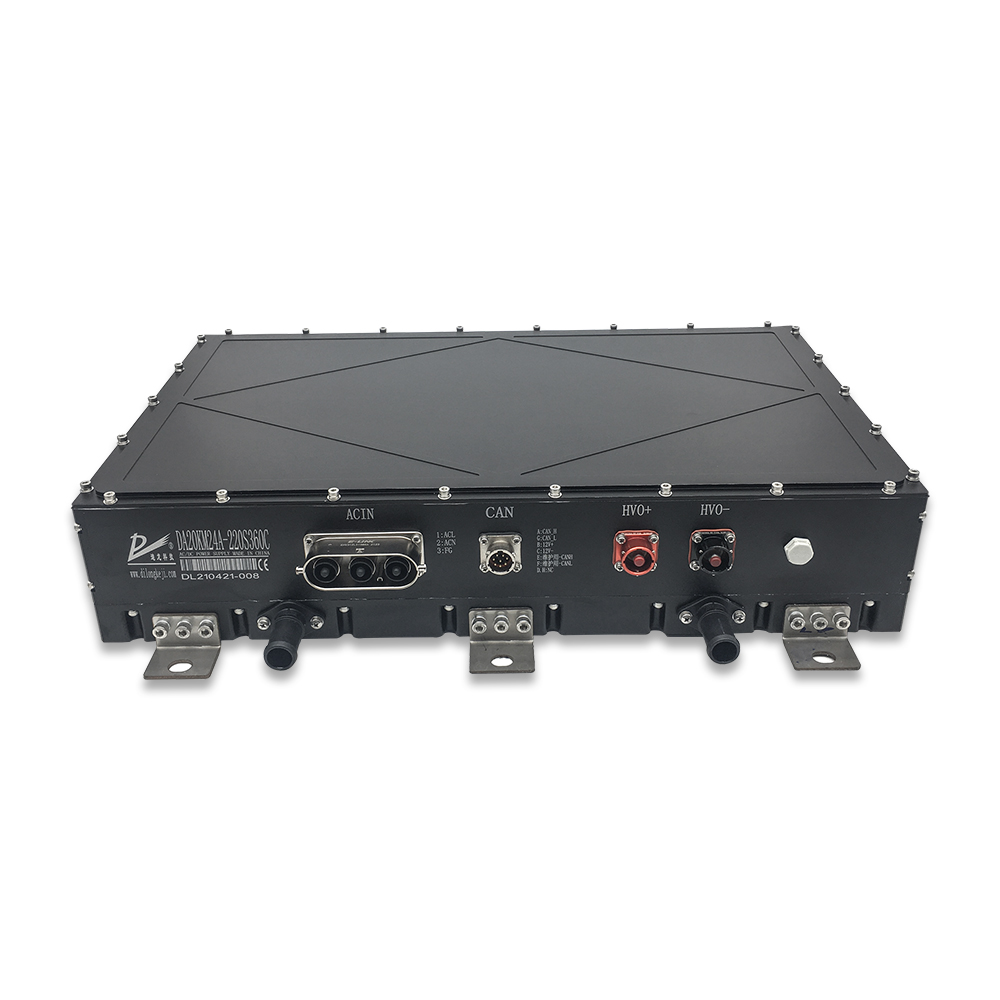

Dilong M24A Series 20kW OBC Single-phase Liquid Cooled EV On Board Charger

Dilong M24A Series 20kW OBC Single-phase Liquid Cooled EV On Board Charger

$2,228.00 USD
$0.00 USD
Model
DA20KM24A
Input Voltage Range
220VAC(85-264VAC)
Rated Output Power
20KW
Output Voltage Range
360VDC(250-450VDC)
400VDC(300-550VDC)
600VDC(400-750VDC)
650VDC(500-850VDC)
Quantity
Only 1000 left
Volume Pricing
Quantity
Price
1+
$2,228.00 USD each
For sample price of 1-10 units, please contact Dilong for a quote.
Support Wholesale Customized
Worldwide Shipping
Carbon neutral

Description

PS:

The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

1.The charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.

2.Wide input voltage range AC85V-AC264V 45Hz-65Hz available for worldwide requirements.

3.Up to 95% power efficiency and more than 94% Full Load Efficiency.

4.The charging mode adopts constant power, constant voltage and constant current automatic state transition, which effectively saves charging time. Available for various kinds of batteries like LiFePO4, Lithium battery, etc.

5.With intelligent charging function, it has intelligent monitoring fault alarm protection function, program me function and fault inquiry function;

6.It also has a built-in 12 V independent auxiliary power supply for power supply of car battery management system.

7.Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).

8.Operating temperature:- 40℃~90℃; Storage temperature:- 45℃~85℃; Mechanical impact and vibration grade: QC/t 895-2011, Automotive-grade seismic rating.

9.Multi-safety protection functions: Input over/under voltage and reverse polarity protection; Output over current/short circuit and over temp protection.

10.With active power factor correction function, power factor ≥ 0.99, right Low pollution of power grid.

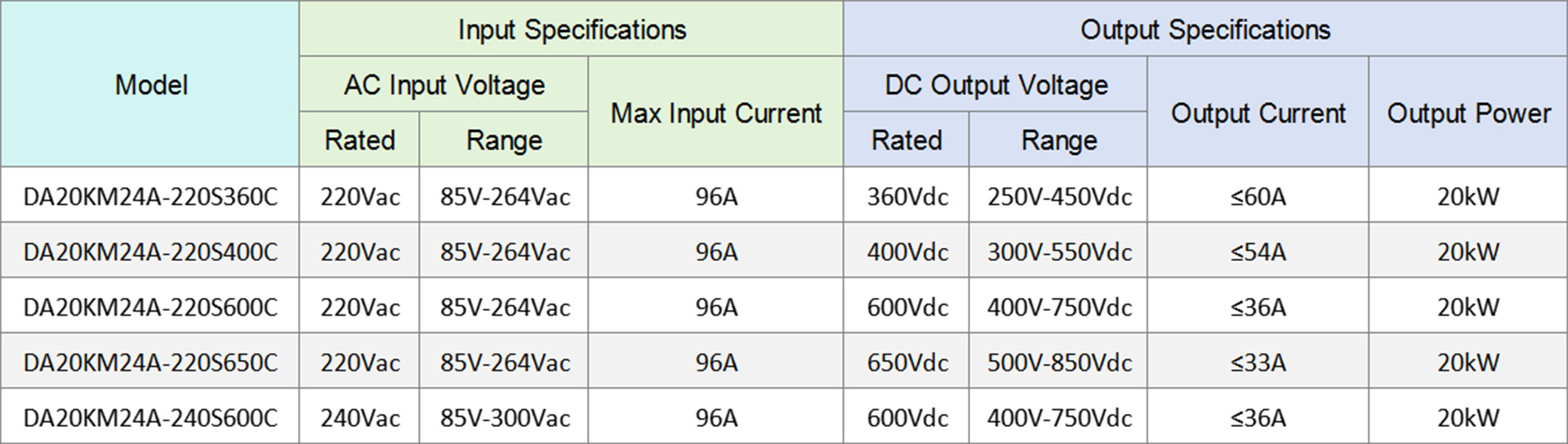

Model Type of Cooling AC Input Voltage Max Input Current DC Output Voltage Output Voltage Range

Output Current Range

Rated Output Power
DA20KM24A-220S360C Liquid Cooling 220Vac; 85-264Vac 96A 360Vdc 250-450Vdc ≤60A 20 kW
DA20KM24A-220S400C Liquid Cooling 220Vac; 85-264Vac 96A 400Vdc 300-550Vdc ≤54A 20 kW
DA20KM24A-220S600C Liquid Cooling 220Vac; 85-264Vac 96A 600Vdc 400-750Vdc ≤36A 20 kW
DA20KM24A-220S650C Liquid Cooling 220Vac; 85-264Vac 96A 650Vdc 500-850Vdc ≤33A 20 kW
