EV On Board Charger Dilong M31A Series 10kW OBC Three Phase Liquid Cooled Onboard Charger

Home / EV On Board Charger Dilong M31A Series 10kW OBC Three Phase Liquid Cooled Onboard Charger

EV On Board Charger Dilong M31A Series 10kW OBC Three Phase Liquid Cooled Onboard Charger

Name: EV On Board Charger Dilong M31A Series 10kW OBC Three Phase Liquid Cooled Onboard Charger
Price: 3428 USD
Availability: InStock

EV On Board Charger Dilong M31A Series 10kW OBC Three Phase Liquid Cooled Onboard Charger

Model

DA10KM31A

Input Voltage Rated/Range

3-Phase 380V(147-457Vac)/1-Phase 220V(85-264Vac)

Output Voltage Rated/Range

50V(30-60Vdc)

70Vdc(50-90Vdc)

90V(70-132Vdc)

150V(100-200Vdc)

210V(160-300Vdc)

360V(210-420Vdc)

400V(300-550Vdc)

600V(400-750Vdc)

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

Dilong DA10KM31A OBC on-board charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation.

The charging mode adopts constant power, constant voltage and constant current automatic state transition, which effectively saves charging time. With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B communication protocol. With intelligent charging function, it has intelligent monitoring fault alarm protection function, programme function and fault inquiry function. it also has built-in 12V independent auxiliary power supply for power supply of car battery management system.

This onboard charger power supply is specially designed for charging high-voltage batteries of new energy vehicles. which is completely synchronized with the world-class automobile power supply manufacturers. The performance indicators have reached or exceeded the international peer level, and the fault-free running time is longer.

Specification

• Input Specifications

Rated Input Voltage: 380Vac

Input Voltage Range: 147V~457Vac

Max Input Current: 16A

Power Factor: ≥0.99

• Output Specifications

Product Model: DA10KM31A-380S50C, DA10KM31A-380S70C, DA10KM31A-380S90C, DA10KM31A-380S150C, DA10KM31A-380S210C, DA10KM31A-380S360C, DA10KM31A-380S400C, DA10KM31A-380S600C

Rated Output Voltage: 50Vdc, 70Vdc, 90Vdc, 150Vdc, 210Vdc, 360Vdc, 400Vdc, 600Vdc

Output Voltage Range: 30V~60Vdc, 50V~90Vdc, 70V~132Vdc, 100V~200Vdc, 160V~300Vdc, 210V~420Vdc, 300V~550Vdc, 400V~750Vdc

Output Power: 6.3kW, 9kW, 9.45kW, 9.9kW

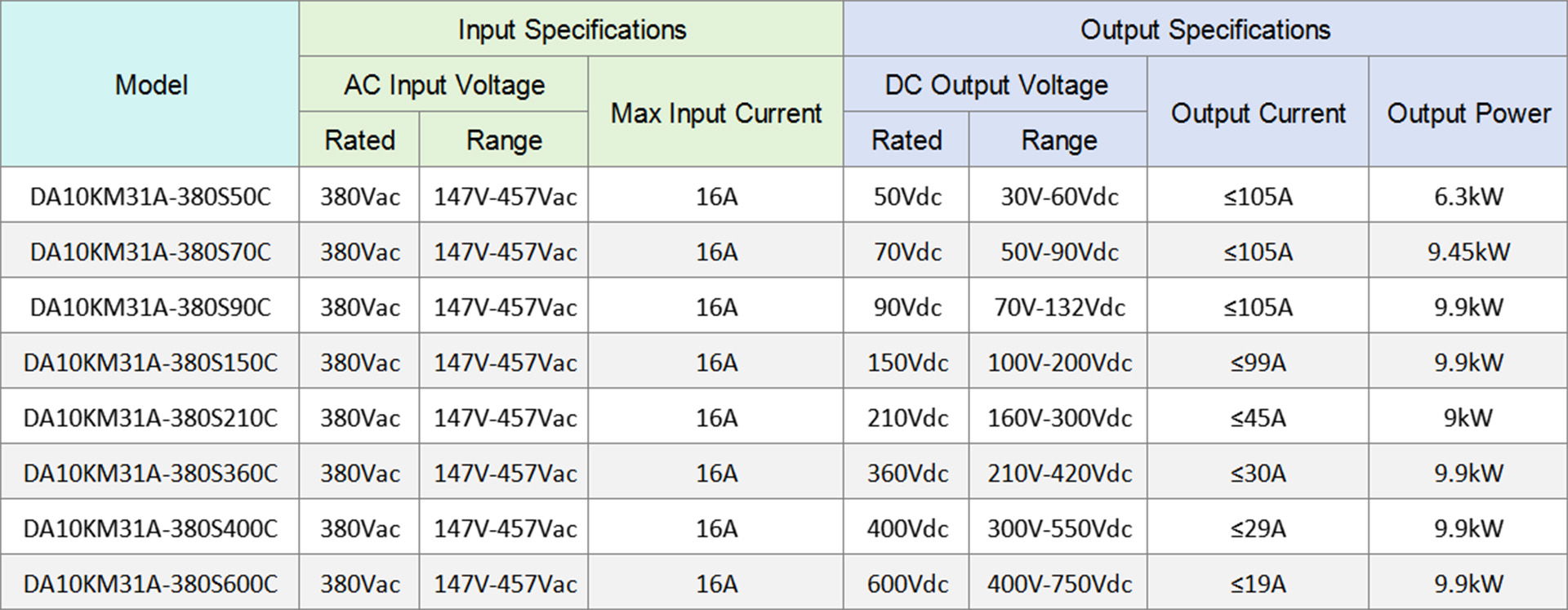

Dilong DA10KM31A OBC Charger Specifications

Efficiency at Full Loading: 94%

Waterproof Grade: IP67

Cooling Way: Liquid Cooling

Control Way: CAN Bus

Operation Temperature: -40℃～80℃

Storage Temperature: -45℃～90℃

• Dimension and Weight

Dimension(L*W*H): 460*385*120mm

Weight: 22kg
