Dilong 3kW EV DC to DC Converter 36V-410V Input to 14V 28V 48V Output Liquid Cooling

Home / Dilong 3kW EV DC to DC Converter 36V-410V Input to 14V 28V 48V Output Liquid Cooling

Dilong 3kW EV DC to DC Converter 36V-410V Input to 14V 28V 48V Output Liquid Cooling

Name: Dilong 3kW EV DC to DC Converter 36V-410V Input to 14V 28V 48V Output Liquid Cooling
Price: 1571 USD
Availability: InStock

Dilong 3kW EV DC to DC Converter 36V-410V Input to 14V 28V 48V Output Liquid Cooling

Product Model

DE3000RHA

Input Voltage

48V(36V~72Vdc)

90V(70V~130Vdc)

150V(100V~200Vdc)

360V(230V~410Vdc)

70V(50V~100Vdc)

Output Voltage

28Vdc

48Vdc

14Vdc

Output Power

3000W

Quantity

For sample price of 1-10 units, please contact Dilong for a quote.

Support Wholesale Customized

Worldwide Shipping

Carbon neutral

PS: The final price is subject to the actual quotation, click above to request a quote!(Any questions please contact dilong@dilongkeji.com)

Product Description

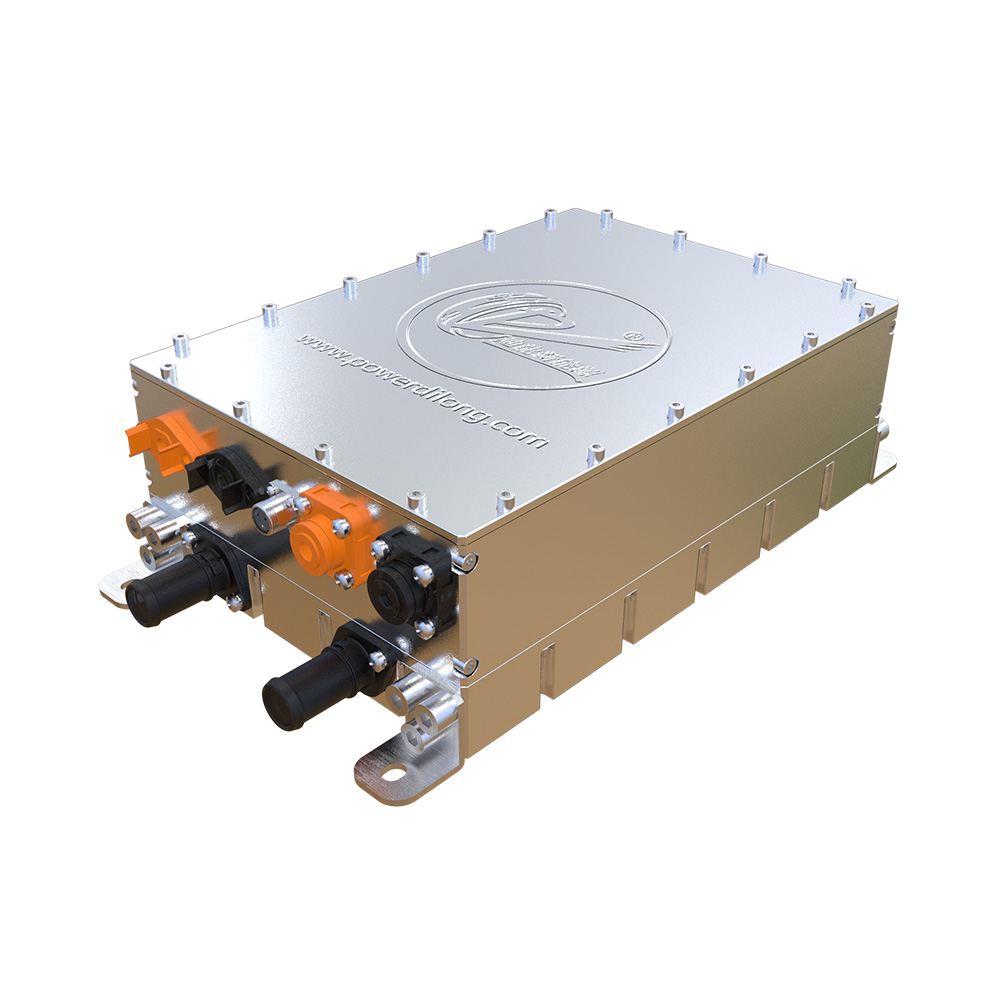

Dilong DE3000RHA car power supply DC-DC converter with features of high efficiency, big power, small volume and reliable working method, adopting advanced pulse width modulation technology.

It With functions of input over/under voltage protection, output over current protection, over temperature protection, etc. Achieving constant voltage and constant current automatic transfer.

It could converter high voltage battery voltage to low voltage used for low voltage device and charge for low voltage battery, specially designed for electric vehicles.

This DC-DC converter synchronizing with the world-class automobile manufacturers, the performance indicators have reached and even exceeded the international peer level, with longer fault free operation time, can be also applied to field needing constant voltage and constant current field.

Specification

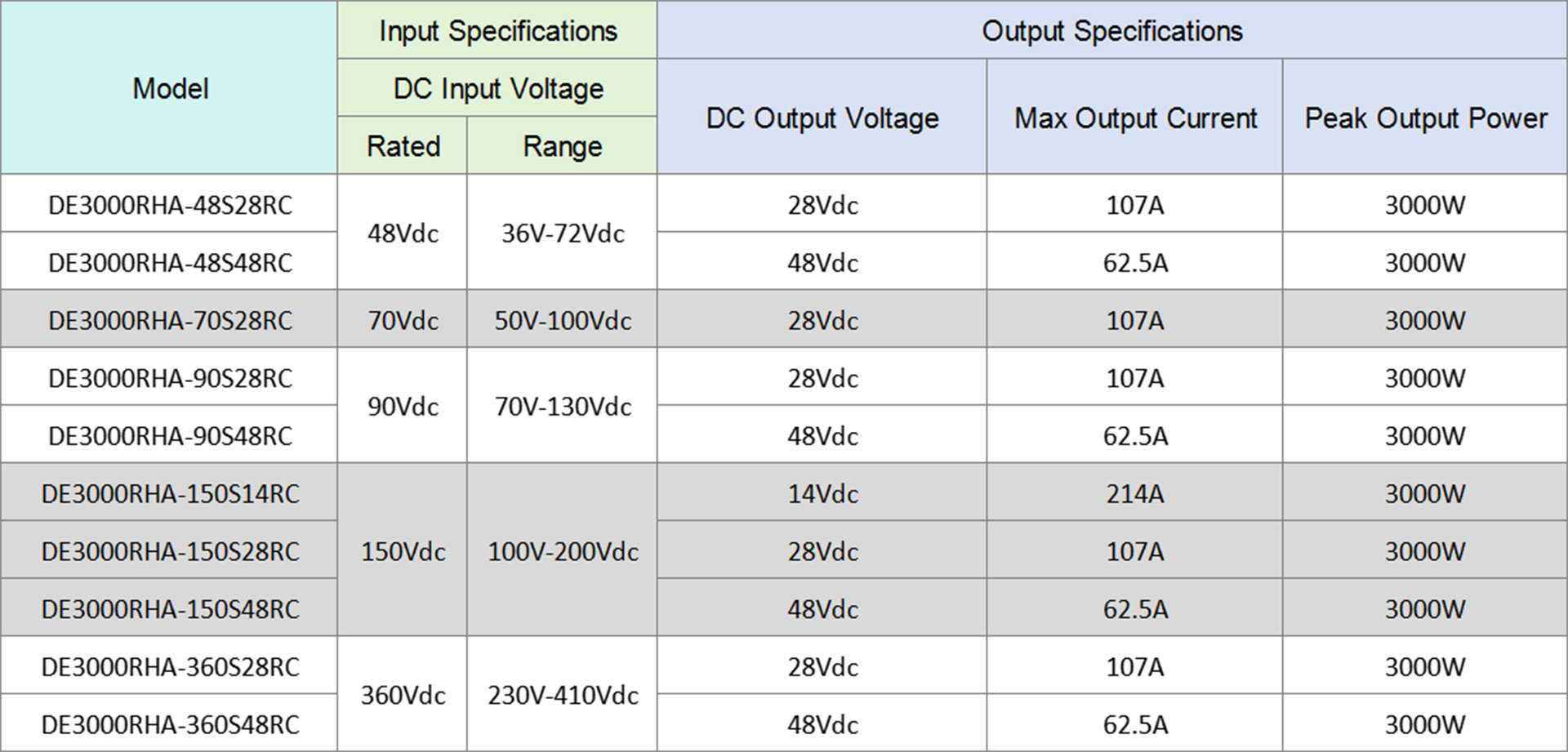

Please refer to the table below for product specifications.

• Product Model

DE3000RHA-48S28RC, DE3000RHA-48S48RC, DE3000RHA-70S28RC, DE3000RHA-90S28RC, DE3000RHA-90S48RC

DE3000RHA-150S14RC, DE3000RHA-150S28RC, DE3000RHA-150S48RC, DE3000RHA-360S28RC, DE3000RHA-360S48RC

• Input Specifications

Input Voltage Range: 36V~72Vdc, 50V~100Vdc, 70V~130Vdc, 100V~200Vdc, 230V~410Vdc

• Output Specifications

Rated Output Voltage: 14Vdc, 28Vdc, 48Vdc

Max Output Current: 214A, 107A, 62.5A

Rated/Peak Output Power: 3000W

Efficiency: ≥90%

Waterproof Grade: IP66

Cooling Way: Liquid Cooling

Control Way: CAN/Enable

Operation Temperature: -30℃～60℃

Storage Temperature: -40℃～105℃

• Dimension and Weight

Dimension(L*W*H): 349*205*117mm

Weight: 8kg

☞ If you have any questions about this product, please contact us at dilong@dilongkeji.com, Best wishes.

Development History
Leading supplier of professional power supply
Products quality and service of first class

Our Honor
IATF16949, ISO14001, RoHs, CE, ISO9001
Utility model patent certificate

Dilong Factory
We are manufacturers. Welcome to visit our factory.

Factory Exterior

SMT Workshop

Aging Workshop

Quality Inspection

Assembly Plant

Product Display

Ten Production Flow of Dilong
Dilong regards product quality as company life and strictly control all process links during production. From producing raw materials to finished products, adopting advanced and scientific production process, efficient production process, advanced detection and monitoring equipment, and continuous innovation, then we can ensure the high-efficiency and reliable quality of products.
